Tighten Bolts—Adjustable Front Axle

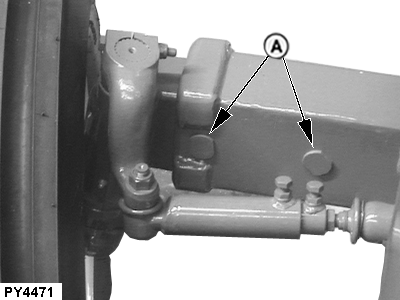

PY4471-UN-15JUN06

Axle-to-Knee Bolts

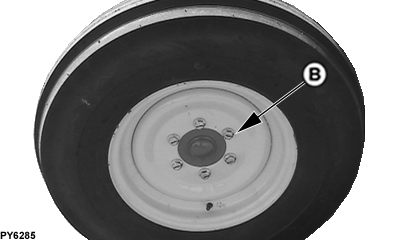

PY6285-UN-10OCT06

Disk-to-Flange Bolts

A - Axle-To-Knee

B - Disk-To-Flange

Tighten bolts in the following locations to specifications:

Item	Measurement	Specification
Adjustable Front Axle—Axle-to-Knee Nuts	Torque	480 N˙m (350 lb-ft)
Adjustable Front Axle—Disk-to-Flange Bolts	Torque	210 N˙m (130 lb-ft)
