Cold-Weather Start Aid

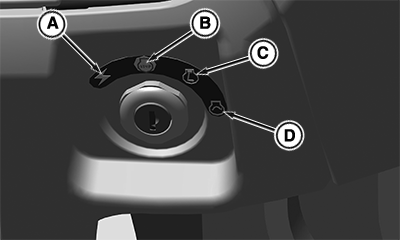

PY41783-UN-20JUL17

Cab

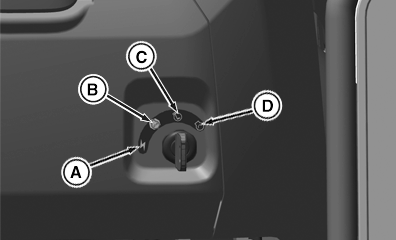

PY43067-UN-12JUL17

OOS

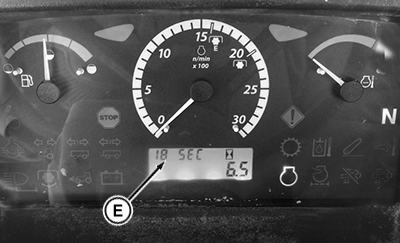

APY19585-UN-13MAR20

Instrument Cluster

A - Accessory ON Position

B - Stop/OFF Position

C - Ignition ON Position

D - Start Position

E - Count Down Timer

CAUTION: Do Not use starting fluid on engines equipped with glow plugs or air intake heaters. Ether injector starting fluid is highly flammable and would explode, causing serious injury.

Tractors are equipped with pre-heaters as a standard equipment starting aid.

1. To activate cold weather starting device, turn key to ignition ON position (C).

   • Allow the engine ECU to complete the cycle of determining the ambient temperature and energize cold start aid relay for activating the heater, if necessary.
   • Once the cold start relay is active, count down timer (E) is displayed in the instrument cluster indicating the time required for heating the grid.



   IMPORTANT: Do Not start the engine until the count down timer (E) is completed to zero.

2. Depress clutch pedal and turn key to start position (D).

3. If engine runs rough, turn the key to stop/OFF position (B) and then to ignition ON position (C) to reactivate cold weather starting device until engine runs smoothly.

   NOTE: Anytime the engine is cranked and does not start, the ignition must be cycled from OFF to ON to reset the preheating cycle of the air heater.

4. Idle engine until it warms to operating temperature.
