Adjust Cylinder Stop

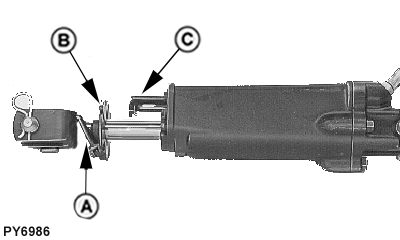

PY6986-UN-17MAY07

A - Lever

B - Adjustable Stop

C - Stop Rod Arm

Working stroke of remote cylinder is adjustable. Cylinder retracts only until it contacts movable stop, then stops automatically.

1. Lift lever (A).

2. Slide adjustable stop (B) to desired position.

3. Push lever down firmly. Be sure lever will not contact stop rod arm (C).

   IMPORTANT: Be sure stop clamps securely on rod. If it does not, lift lever and rotate it clockwise, then push it down firmly.
