Tread Settings—Adjustable Front Axle
PY4471-UN-15JUN06
LV1515-UN-05MAR96
A - Beam Adjustment Nut

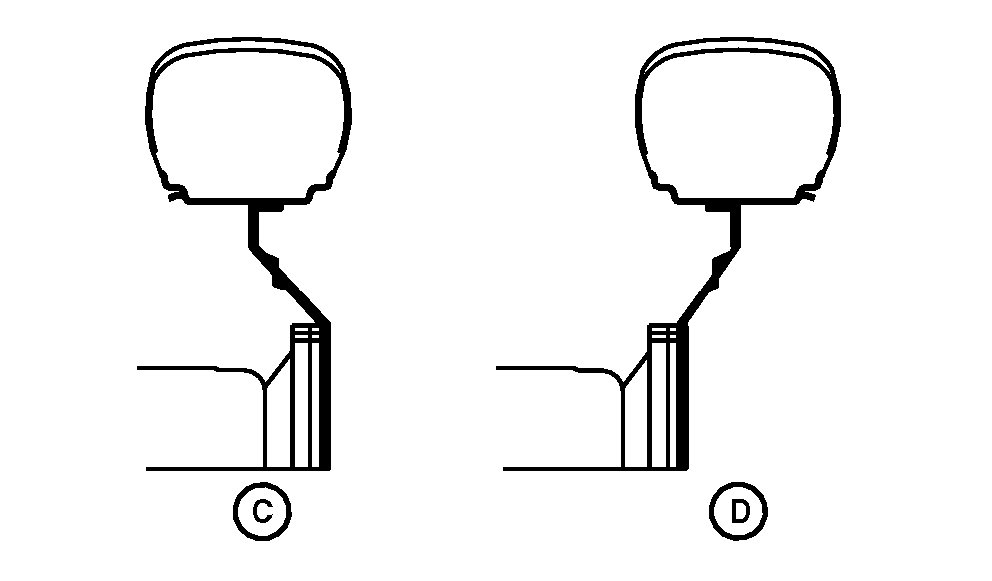

Front rims are offset. With some tires, this provides two tread spacings, at each axle setting.
|
ADJUSTABLE FRONT AXLE TREAD SETTINGS Diagram C Centerline-to-Centerline |
||||||
|---|---|---|---|---|---|---|
|
Tread Positionª |
||||||
|
Tire |
1 |
2 |
3 |
4 |
5 |
6 |
|
7.5-16 |
1449 mm (57.0 in.) |
1549 (61.0 in.) |
1649 (64.9 in.) |
1749 (68.9 in) |
1849 (72.8 in.) |
1949 (76.7 in.) |
|
27/12-15 11L-15 |
1488 mm (58.6 in.) |
1588 mm (62.5 in.) |
1688 mm (66.5 in.) |
1788 mm (70.4 in.) |
1888 mm (74.3 in.) |
1988 mm (78.3 in.) |
|
ªTread position 1 is with axle adjustment at its most inward location. See adjust Front Axle Tread Width in this section. |
||||||
|
ADJUSTABLE FRONT AXLE TREAD SETTINGS Diagram D Centerline-to-Centerline |
||||||
|---|---|---|---|---|---|---|
|
Tread Positionª |
||||||
|
Tire |
1 |
2 |
3 |
4 |
5 |
6 |
|
7.5-16 |
1583 (62.3 in.) |
1683 mm (66.3 in.) |
1783 mm (70.2 in.) |
1883 mm (74.1 in.) |
1983 mm (78.1 in.) |
2083 mm (82.0 in.) |
|
27/12-15 11L-15 |
1571 mm (61.9 in.) |
1671 mm (65.8 in.) |
1771 mm (69.7 in.) |
1871 mm (73.7 in.) |
1971 mm (77.6 in.) |
2071 mm (81.5 in.) |
|
ªTread position 1 is with axle adjustment at its most inward location. See adjust Front Axle Tread Width in this section. |
||||||
|
SA61034,0000243-19-20080715 |
