Adjust Front Axle Tread Width

PY6010
PY6010-UN-26JUL06

PY6011
PY6011-UN-26JUL06

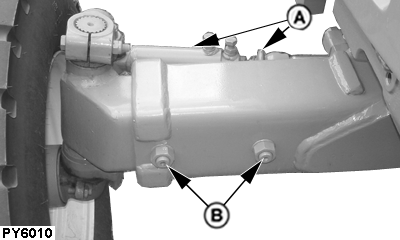

A - Tie Rod

B - Nuts (4 used)

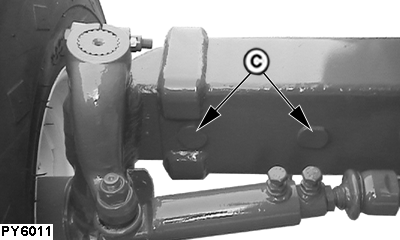

C - Tapered Bolt (4 used)

  1. IMPORTANT: DO NOT place jack under engine oil pan.

    Jack up front end of tractor.

  2. When making large tread adjustments it may be necessary to change the tie rod length (A) before or during axle adjustments. (See Check and Adjust Toe-In for your axle type.)

  3. Remove four nuts (B) and tapered bolts (C) from front axle (2 on each side).

  4. Slide axle knees to desired position. Both sides should be adjusted to same spacing.

  5. Reinstall axle nuts (B) and bolts(C) on each side. Tighten bolts to specification.

    ItemMeasurementSpecification
    Front Axle BoltsTorque480 N˙m (350 lb-ft)

  6. Set toe-in. (See Check and Adjust Toe-In for your axle type.)

SA61034,000026B-19-20080715
