Tread Settings—Two-Position Rear Wheels

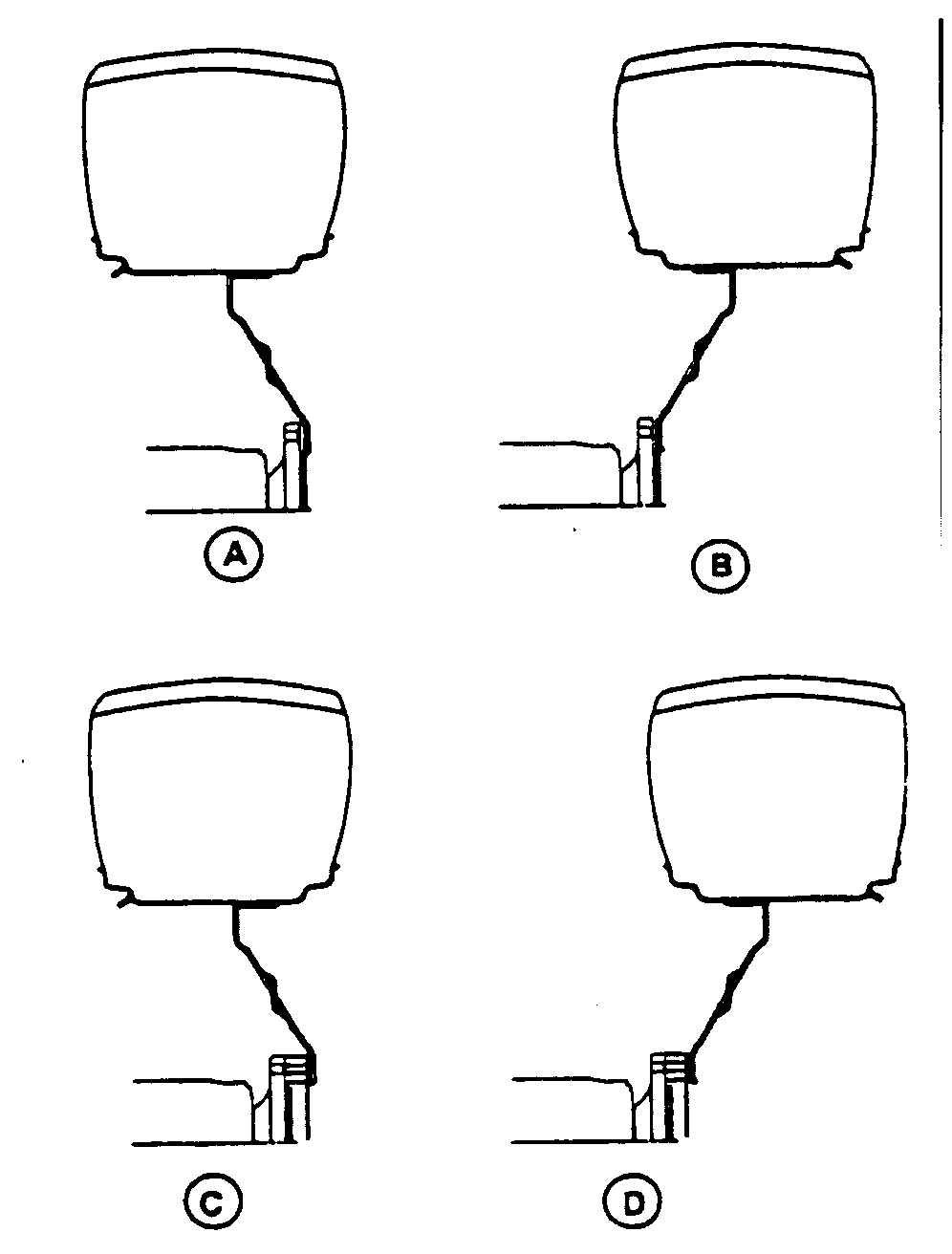

M47178-UN-31JAN92
The relationship of the wheels is shown in the diagrams.
IMPORTANT: After setting wheel spacing, tighten rear wheel disk-to-hub bolts to specification. Drive tractor 100 m (109 yd) and tighten again.
| Item | Measurement | Specification |
| Rear Wheel -Specification | ||
| Rear Wheel Rim-to-Disk Nuts | Torque | 245 N.m (180 lb.ft) |
| Rear Wheel Disk-to- Flange Bolts | Torque | 550 N.m (406 lb.ft) |
|
TWO-POSITION REAR WHEELS—TREAD WIDTH (Centerline-to-Centerline) |
||||||||
|---|---|---|---|---|---|---|---|---|
|
No Spacer |
30 mm Spacer |
44 mm Spacer |
111 mm Spacer |
|||||
|
Tire |
A |
B |
C |
D |
C |
D |
C |
D |
|
21.5L-16.1 6PR R3 |
INTª |
1658 mm (65.3 in.) |
INTª |
1718 mm (67.6 in.) |
INTª |
1746 mm (68.7 in.) |
1495 mm (58.9 in.) |
1880 mm (74.0 in.) |
|
ªInterference (Do not use) |
||||||||
|
SA61034,000029E-19-20080306 |
