Adjust Hitch Side Sway Bar (If Equipped)

1. NOTE: Check implement operator's manual for instruction on whether to allow side sway.

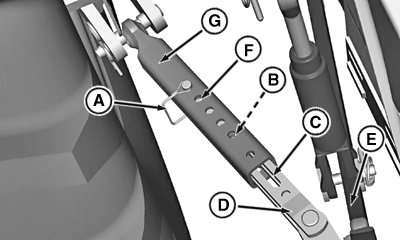

   PY18421-UN-10JUN14

   Sway Bar Pin in Sway Position

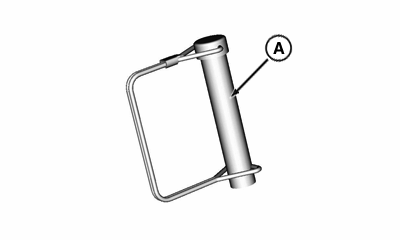

   PY18422-UN-17JUN14

   Pin

   A - Pin

   B - Inner Fixed Position Holes

   C - Sway Position Inner Slot

   D - Inner Sliding Member

   E - Draft Link

   F - Fixed Position Holes

   G - Stabilizer

   If sway is desired, install pin (A) in any of desired fixed position hole (F), ensuring it goes through sway position inner slot (C).

---




2. If sway is not desired, move draft link (E) to desired position. Install pin (A) in fixed position hole (F) that lines up with one of the inner fixed position holes (B) (not slot) of the inner sliding member (D).

3. Adjust opposite side sway bar to same position.
