Extend/Retract Cylinder

PY6487-UN-20NOV18

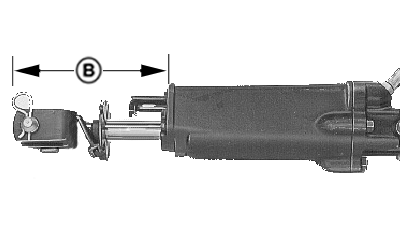

Cylinder

PY17936-UN-11JUN14

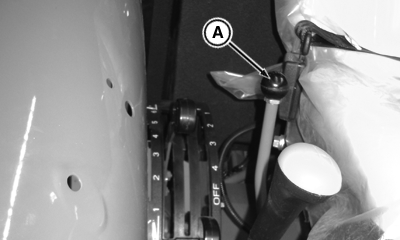

OOS

PY17983-UN-11JUN14

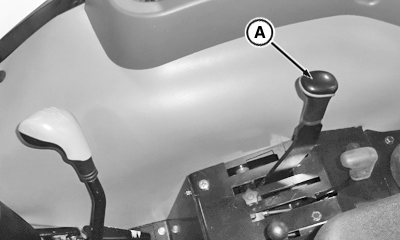

Cab

A - Control Lever

B - Extend and Retract Cylinder

Extend Cylinder

Pull lever (A) to the rear of neutral and hold it against spring pressure. This extends cylinder (B) (up arrow) connected to couplers I and in most cases raises implement. Lever returns to neutral when released.

Retract Cylinder

Push lever (A) forward and hold it against spring pressure. This retracts cylinder (B) connected to SCV couplers and in most cases lowers implement. Lever returns to neutral when released.

Float Position

Push lever full forward into detent to operate Float feature. Float operation allows cylinder to extend and retract freely, such as when an implement follows ground contour.

IMPORTANT: When FLOAT is not needed, manually move lever back to neutral position to prevent accidental use of “Float”.
