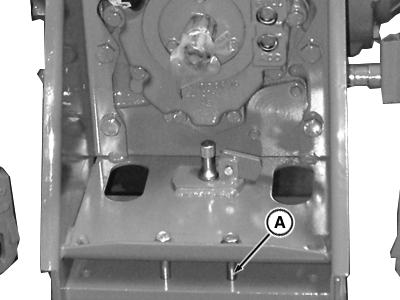

Use Swinging Drawbar

PY16044
PY16044-UN-31MAR14

PowrReverser™

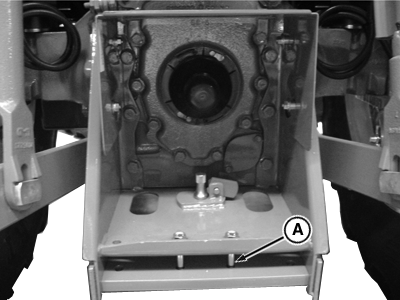

PY16187
PY16187-UN-26JUN12

Sync Shuttle

A - Drawbar Cap Screws

Drawbar cap screws (A) can be removed to let drawbar swing free. This is helpful when turning under load.

Drawbar cap screws should be installed and tightened at all other times.

IMPORTANT: Install drawbar cap screws to prevent drawbar from swinging free during transport of towed loads.

SD74272,000017D-19-20140409
