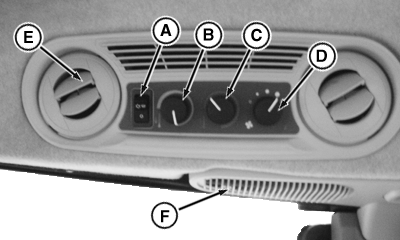

Overhead Control Panel — CAB

PY16083-UN-19JUN12

Right-Hand Side

A - Air Conditioning/Defrost Switch

B - Air Conditioning Temperature Control Knob

C - Heater Temperature Control Knob

D - Blower Speed Knob

E - Directional Air Louver (6 used)

F - Recirculating Air Intake (2 used)
