Select Seat Position

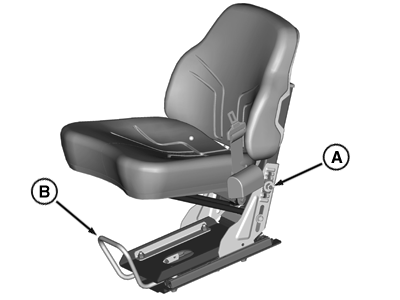

PY16007
PY16007-UN-04JUN12

A - Seat Adjustment Cap Screws—Lower or Raise

B - Seat Adjustment Lever—Fore or Aft

There are two seat adjustments available:

Move lever (B) and slide seat closer to or away from dash panel and controls.

To raise or lower seat: Use a wrench to adjust cap screws (A) to desired seat height.

SD74272,00001DD-19-20120622
