Operating Rotating Beacon Light — ( If Equipped )

PY16095
PY16095-UN-22JUN12

PY16096
PY16096-UN-22JUN12

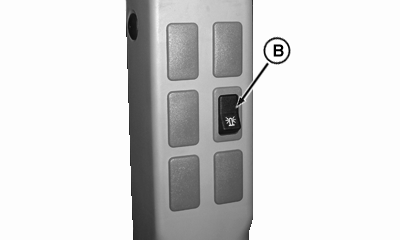

Right-Hand Post

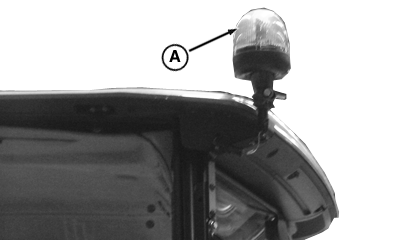

A - Light

B - Switch

Depress switch (B) to activate light (A).

To remove light for storage or clearance:

  1. Loosen wing nut and lift light from tube.

  2. Install cap on tube end to protect light socket.
