Adjusting Seat

CAUTION: To avoid accidents, adjust seat before driving.

PY16098
PY16098-UN-22JUN12

PY16099
PY16099-UN-22JUN12

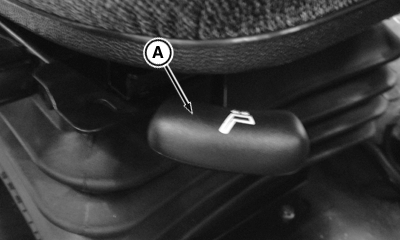

A - Forward/Backward Adjustment Lever

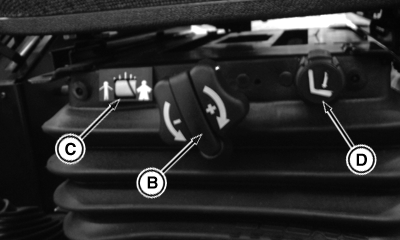

B - Weight Adjustment Lever

C - Display Window

D - Height Adjustment Lever

Forward or Backward: Lift lever (A), move seat to desired position and release lever to lock in position.

Weight: Rotate lever (B) away from seat and turn:

  • Clockwise—Increase load
  • Counterclockwise—Reduce load

NOTE: Suspension should not bottom out when properly adjusted.

Desired weight setting appears in display window (C). Rotate lever toward seat when done.

Height: To adjust the seat upward, rotate knob (D) in clockwise. To adjust downward, rotate the knob (D) counterclockwise.
