Opening Windows

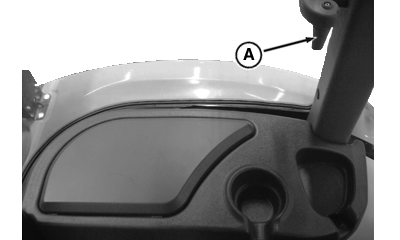

PY16142-UN-23JUN12

Left-Side Window

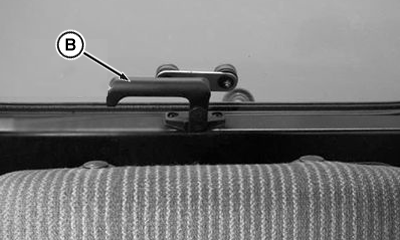

PY16143-UN-23JUN12

Rear Window

A - Side window handle

B - Rear window handle

Side and rear windows can be opened for better ventilation.

Side: Pull handle (A) toward rear and push to lock open.

Rear: Rotate handle (B) clockwise and push out.

NOTE: Rear window opening provides a large exit path if cab doors are blocked in case of an emergency.
