Use Power Beyond Attachment (If Equipped)

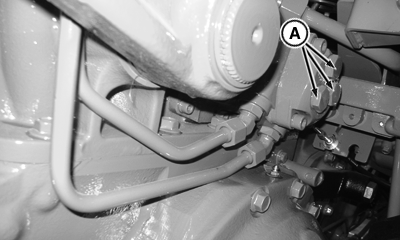

PY16185-UN-26JUN12

Power Beyond in Storage Position

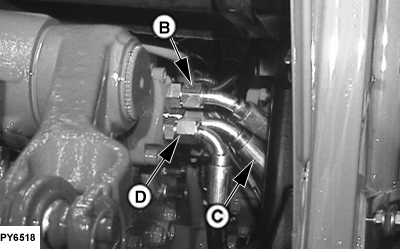

PY6518-UN-09AUG13

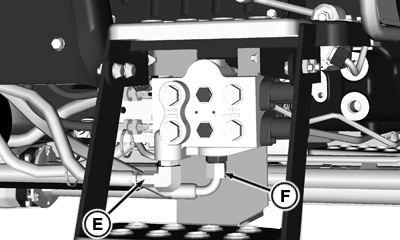

PY18996-UN-20JUN14

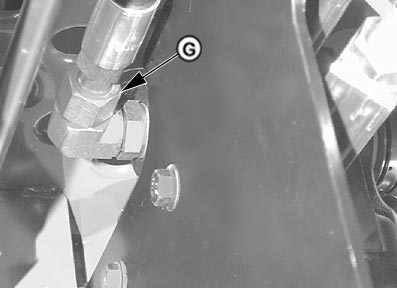

PY6520-UN-06NOV06

A - Plug

B - Excess Oil Return Line

C - Oil Return Line

D - Oil Supply Hose

E - Mid Mount Oil Supply Port

F - Mid Mount Oil Return Port

G - Mid Mount Excess Return Oil Port

Power beyond is designed for operations of orbital motors or any application where continuous high volume hydraulic oil flow is needed.

To use power beyond further remove three plug (A) from power beyond and attach oil supply hose (D) to mid mount supply valve line (E) , oil return line (C) to mid mount valve return line (F) and excess return line (B) to mid mount excess line (G).

When not in use plug power beyond and mid mount valve.
