Change MFWD Axle Wheel Hub Oil

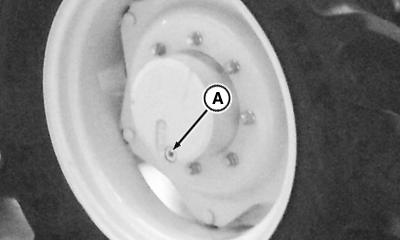

PY16237-UN-17JUL12

A - Drain/Fill Port Plug

Service Interval
	Regular—600 Hours

1. NOTE: Approximate wheel hub oil level is 0.8 L (0.21 gal) each.

   Park tractor on level surface.

2. Rotate wheel until drain/fill port plug (A) is at bottom of hub.

3. Remove plug and drain oil.

4. After oil has drained, rotate wheel until drain/fill port is positioned horizontally.

5. Add oil until level is just below edge of hole. John Deere Hy-Gard™ Transmission/Hydraulic Oil is recommended. (See Fuels, Lubricants and Coolant section.)

6. Apply pipe sealant with TEFLON®, or equivalent, to threads of plug.

7. Install plug and tighten to specifications.

   Item	Measurement	Specification
   Plug-to-Hub	Torque	70 N·m (52 lb-ft)

8. Repeat procedure on opposite wheel hub.
