Lubricate Rear Axle Bearings

PY16239-UN-17JUL12

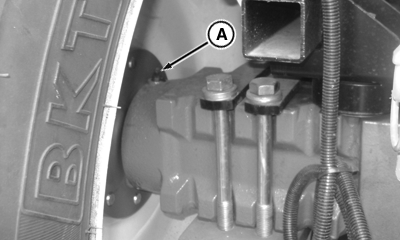

Left-Hand Side Shown

A - Rear Axle Fittings

Lubricate rear axle fittings (A), both sides, with several shots of multi-purpose grease. (See Fuels, Lubricants and Coolant section.)

Service Interval—600 Hours* * Weekly / 10 Hours if operated in extremely wet or muddy conditions
