Inspect Seat Belt

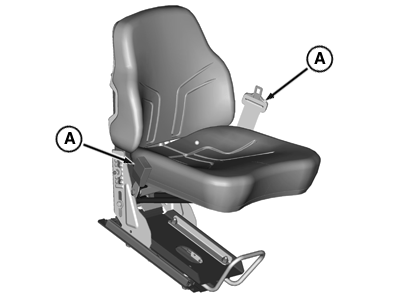

PY16006-UN-04JUN12

OOS

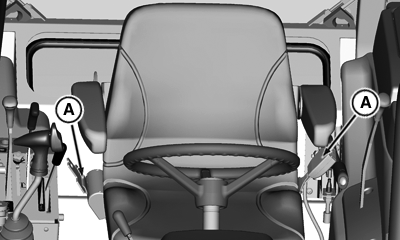

PY16097-UN-22JUN12

Cab

A - Seat Belt

Service Interval—Annually

CAUTION: If the seat belt system, including the mounting hardware, buckle, belt or retractor show any sign of damage such as cuts, fraying, extreme or unusual wear, discoloration or abrasion, the entire seat belt system should be replaced immediately. Replace the belt system only with replacement parts approved for your machine.

Inspect seat belts (A) and mounting hardware. If seat belts need to be replaced, see your John Deere dealer.
