Keep Cab Protection System Installed Properly

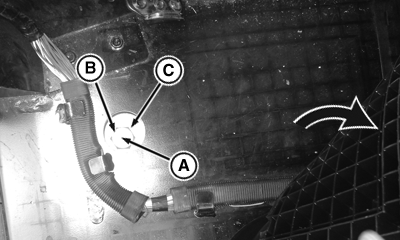

PY16229-UN-17JUL12

Front Cab Mount (Left-Hand Side)

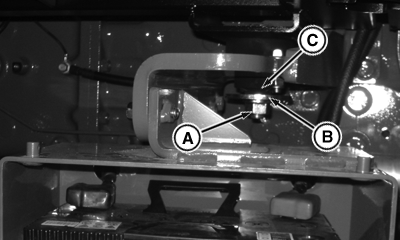

PY16228-UN-04SEP12

Front Cab Mount (Right-Hand Side)

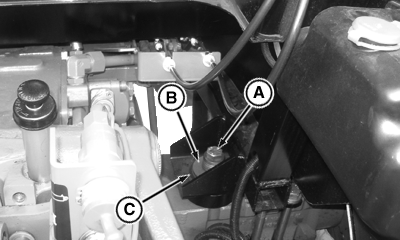

PY16300-UN-17JUL12

Rear Cab Mount (Right-Hand Side)

A - Cap Screw

B - Washer

C - Isolator

CAUTION: Make certain all parts are installed correctly if cab protection system is loosened or removed for any reason. Tighten mounting cap screws to specification.

The protection offered by cab protection system will be impaired if cab protection system is subjected to structural damage, as in an overturn incident, or is in any way altered by welding, bending, drilling, or cutting. A damaged cab protection system should be replaced, not reused. Any alteration to the cab protection system must be approved by the manufacturer.

When installation of equipment on a machine necessitates loosening or removing cab protection system, mounting cap screws should be tightened to specification

Lift up rubber floor mat and pry out plugs to access FRONT mounting hardware.

Check front and rear mounting hardware (A—C) for proper torque.

Item	Measurement	Specification
Cab Protection System Mounting Cap Screws	Torque	350 N•m (258 lb.-ft.)
