Tread Settings—Multi-Position Rear Wheels
Wheel tread on rear axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.
LV8610-UN-28AUG03
Tread Settings—Multi-Position Rear Wheels
Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor. (This maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing rear wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation.

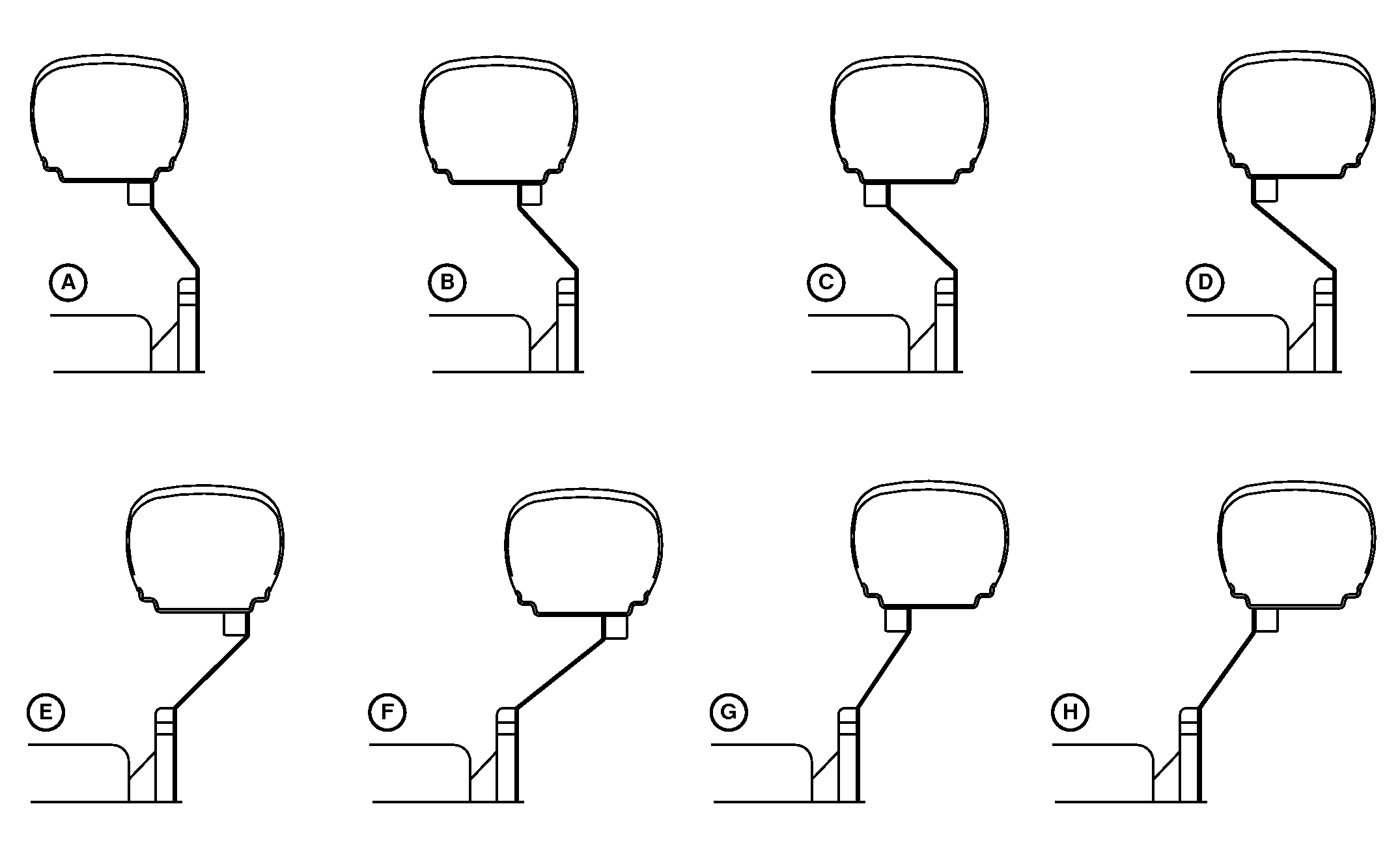

The relationship of the wheel disk and rim in obtaining the different tread settings is shown in the diagrams, on the facing page.
A study of these diagrams, before attempting to change tread settings, will save unnecessary labor.
IMPORTANT: After setting wheel spacing, tighten rim-to-disk and disk-to-flange bolts. Drive tractor 100 m (109 yd) and tighten again.
| Item | Measurement | Specification |
| Rear Wheel -Specification | ||
| Rear Wheel Rim-to-Disk | Torque | 245 N.m (180 lb.ft) |
| Rear Wheel Disk-to- Hub | Torque | 550 N.m (406 lb.ft) |
NOTE: Tread settings are measured at bottom of centerline.
NOTE: 30 mm, 44 mm, and 111 mm spacer are available. Adjust dimensions accordingly if used.
Rear Tread Width
|
MULTI-POSTION REAR WHEELS TREAD WIDTH (Centerline-to-Centerline) |
||||||||
|---|---|---|---|---|---|---|---|---|
|
Diagram |
||||||||
|
Tire |
A |
B |
C |
D |
E |
F |
G |
H |
|
14.9-28 |
INTª |
INTª |
INTª |
1417 mm (55.8 in.) |
1512 mm (59.5 in.) |
1617 mm (63.7 in.) |
1715 mm (67.5 in.) |
1820 mm (71.1 in.) |
|
16.9-28 |
INTª |
INTª |
INTª |
1417 mm (55.8 in.) |
1512 mm (59.5 in.) |
1617 mm (63.7 in.) |
1715 mm (67.5 in.) |
1820 mm (71.1 in.) |
|
16.9-24 |
INTª |
INTª |
INTª |
1417 mm (55.8 in.) |
1512 mm (59.5 in.) |
1617 mm (63.7 in.) |
1715 mm (67.5 in.) |
1820 mm (71.1 in.) |
|
ªInterference (Do not use) |
||||||||
|
SD74272,0000334-19-20120925 |
