Tractor Controls — OOS (PowrReverser™ Transmission)

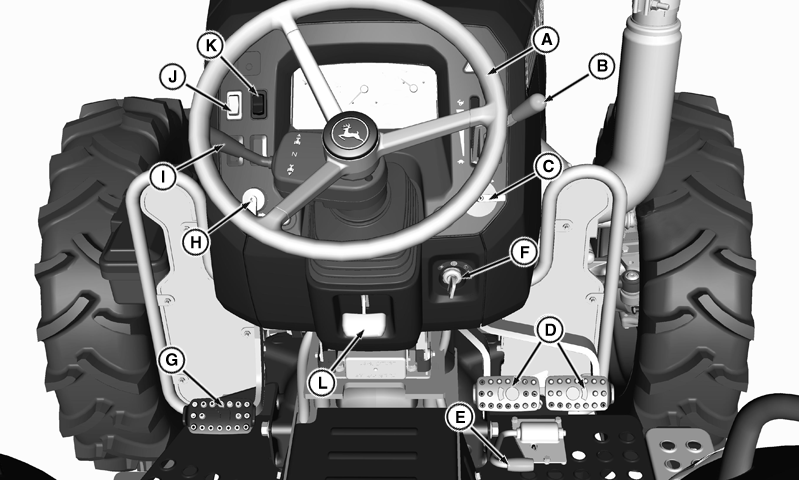

PY17695-UN-14APR14

A - Steering Wheel

B - Hand Throttle

C - Light Switch

D - Brake Pedals

E - Foot Throttle

F - Key Switch

G - Clutch Pedal

H - Turn Signal Switch

I - FNR Lever

J - Roll Mode Switch

K - Regeneration Switch

L - Steering Wheel Tilt Lever (If Equipped)

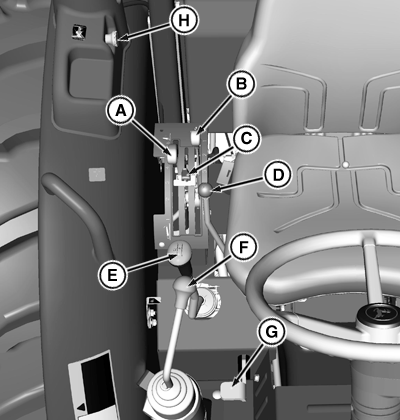

PY17696-UN-22MAR13

Right-Hand Side

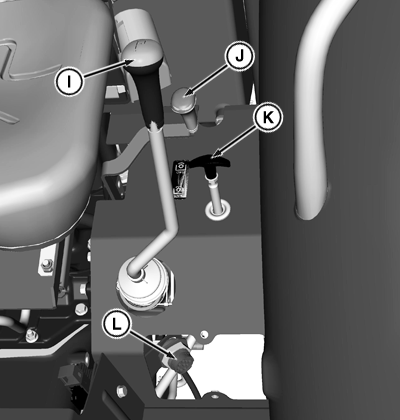

PY17944-UN-22MAR13

Left-Hand Side

PY17697-UN-17SEP13

Right Side Back Of The Seat

A - Rockshaft Position Control Lever

B - Rockshaft Draft Control Lever

C - Position Control Stop Knob

D - SCV I Lever

E - Gear Shift Lever

F - Midmount SCV Joystick (If Equipped)

G - Differential Lock Pedal

H - EH PTO Switch

I - Range Shift Lever

J - Dual PTO Lever

K - MFWD Lever

L - Service Advisor Port

M - Rockshaft Rate-Of-Drop Knob
