Tractor Controls — OOS (Sync Shuttle Transmission)

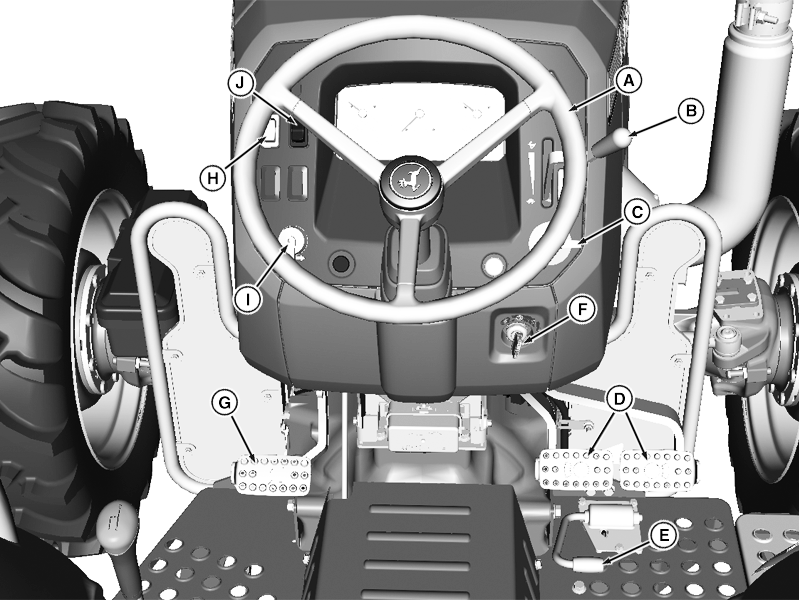

PY17698-UN-24OCT13

A - Steering Wheel

B - Hand Throttle

C - Light Switch

D - Brake Pedals

E - Foot Throttle

F - Key Switch

G - Clutch Pedal

H - Role Mode Switch

I - Turn Signal Switch

J - Regeneration Switch

PY17699-UN-22MAR13

Right-Hand Side

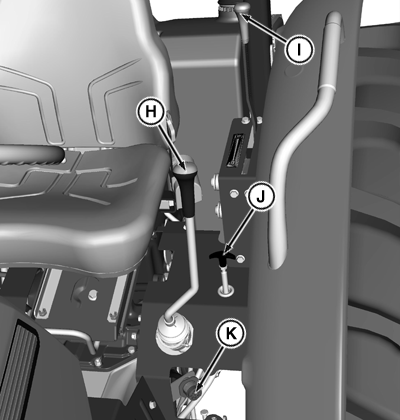

PY17700-UN-22MAR13

Left-Hand Side

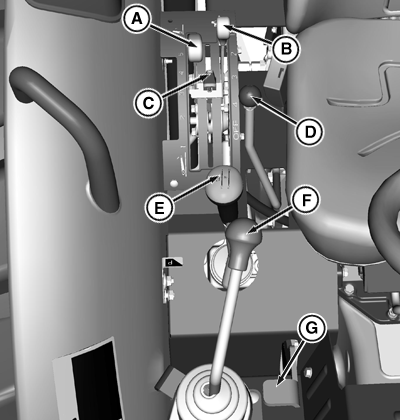

PY17697-UN-17SEP13

Right Side Back Of The Seat

A - Rockshaft Position Control Lever

B - Rockshaft Draft Control Lever

C - Position Control Stop Knob

D - SCV I Lever

E - Gear Shift Lever

F - Midmount SCV Joystick (If Equipped)

G - Differential Lock Pedal

H - Range shift Lever

I - PTO Lever

J - MFWD Lever

K - Service Advisor Port

M - Rockshaft Rate-Of-Drop Knob
