Using Warning Lights — OOS

PY17910-UN-26AUG13

PY18375-UN-08APR14

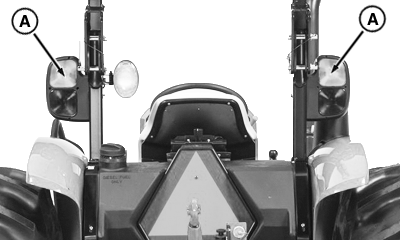

A - Warning Lights

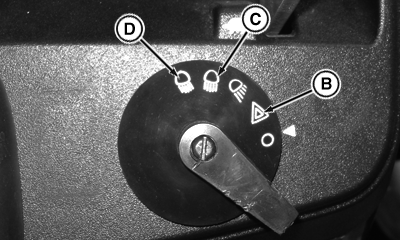

B - Warning Light Switch Position

C - Full-Beam Headlight Switch Position

D - Low-Beam Headlight Switch Position

CAUTION: Prevent collisions between other road users, slow moving tractors with attachments or towed equipment, and self-propelled machines on public roads. Frequently check for traffic from the rear, especially in turns, and use hand signals or turn signal lights.

Use headlights, flashing warning lights, and turn signals day and night. Follow local regulations for equipment lighting and marking. Keep lighting and marking visible and in good working order. Replace or repair lighting and marking that has been damaged or lost. An implement safety lighting kit is available from your John Deere dealer.

Warning lights (A) are switched on in either warning light (B), full-beam headlight (C), or low-beam headlight (D) light switch position.
