Daily Service Before Starting Engine

PY18378-UN-30APR14

PY6494-UN-09MAY07

PY17917-UN-22MAR13

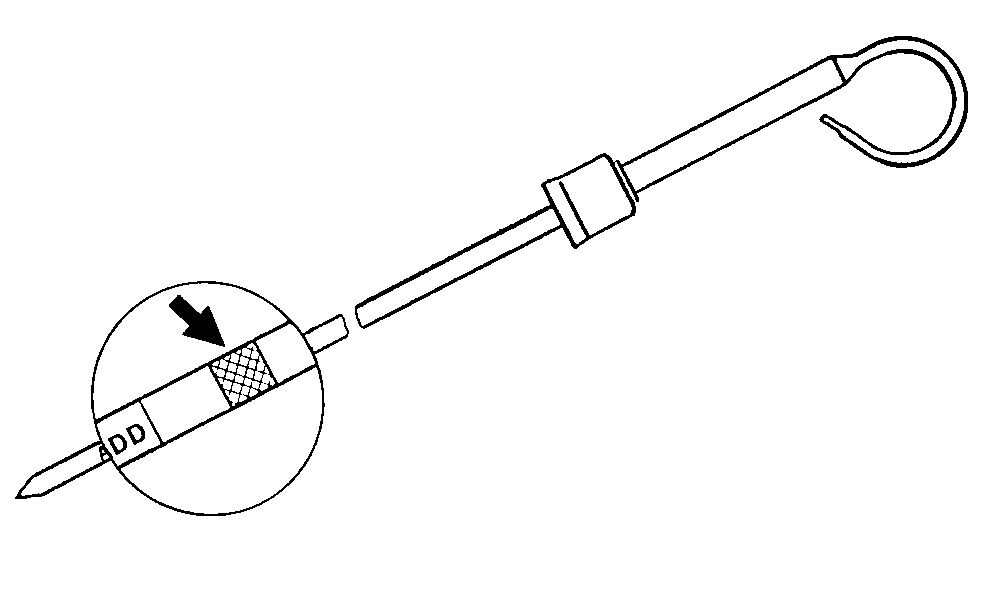

A - Dipstick

B - Oil Filler Port

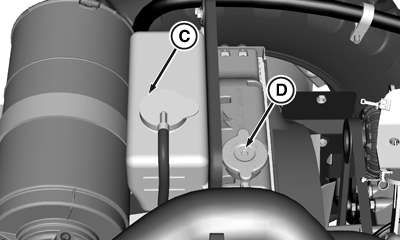

C - Radiator Expansion Tank

D - Radiator Cap

1. NOTE: Park tractor on level ground before executing checks.

   Check engine oil level. Clean dipstick (A) and reinsert fully. Withdraw it again and check oil level. The window for safe operation of engine is when the oil level is between the upper and lower marks of the dipstick.

   Do not operate the engine if oil level is below minimum mark. In this case, add recommended oil. (See “Fuels, Lubricants, Coolant” section.)

2. Check coolant level of radiator expansion tank (C). If the engine is cold and coolant level is below LOW, add coolant to expansion tank until level reaches LOW mark.

   NOTE: With engine cold, coolant level should be at LOW mark. At operating temperature coolant level of a tractor should be at FULL mark.

3. Lubricate the following points every 10 hours if operating the tractor in extremely wet or excessively muddy conditions.

   • Front axle pivot pins.
   • Rear axle bearings.



4. Lubricate the following items after pressure washing, if necessary:

   • Hood latch
   • Operator's seat slide rails



5. IMPORTANT: Never run the engine when the dust unloading valve is removed!


   PY17918-UN-29MAR13

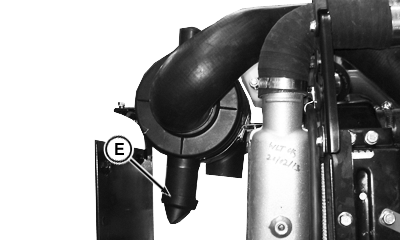

   E - Dust Unloading Valve

   Remove deposits by squeezing the valve.

   During harvesting, grass and chaff may adversely affect the performance of the dust unloading valve. Remove and clean the dust unloading valve as necessary. Replace damaged valve immediately.

---




6.
   PY17919-UN-01APR13

   A - Vent hose

   Make sure the hose (A) of the rocker arm cover ventilation is not pinched.

   Remove any dirt from the hose end.

---
