Before Starting the Engine –– (PowrReverser™)

TS220
TS220-UN-15APR13

PY17912
PY17912-UN-18MAR14

OOS

PY17913
PY17913-UN-18MAR14

PY18353
PY18353-UN-18MAR14

OOS

PY17949
PY17949-UN-09JUN14

Cab

PY17950
PY17950-UN-09JUN14

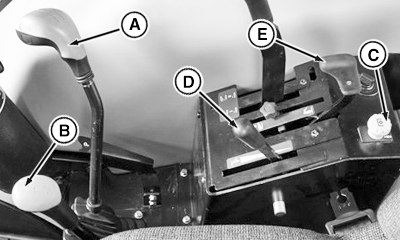

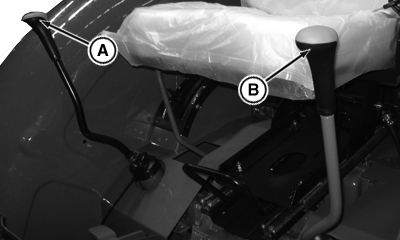

A - Gear Shift Lever

B - Range Shift Lever

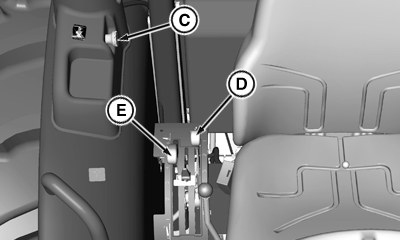

C - PTO Switch

D - Rockshaft Draft Control Lever

E - Rockshaft Position Control Lever

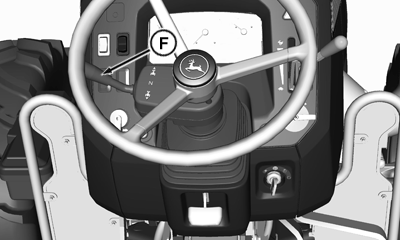

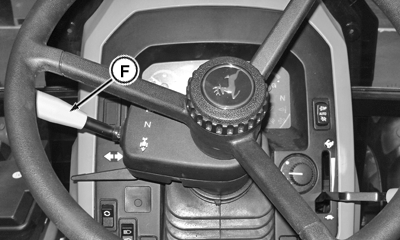

F - FNR Lever

CAUTION: Prevent asphyxiation. Engine exhaust fumes can cause sickness or death to you or someone else.

If you must operate engine in a building, be positive there is adequate ventilation. Either use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to bring enough outside air into the area.

  1. Check fuel gauge to be sure tractor has plenty of fuel.

  2. Place gear shift lever (A) in park position (P) and range shift lever (B) in NEUTRAL (N) and PTO Switch (C) in OFF position. Starter will not operate if gear shift lever and PTO Switch are not in these positions.

  3. Place rockshaft control levers (D and E) in lowered position.

  4. Place FNR lever (F) in NEUTRAL (N)

  5. Check indicator lights. Indicators should illuminate when key switch is turned to the ON position.

    If any indicator does not function properly, see your John Deere dealer.

SD74272,0000482-19-20140408
