Before Starting the Engine –– (Sync Shuttle)

TS220
TS220-UN-15APR13

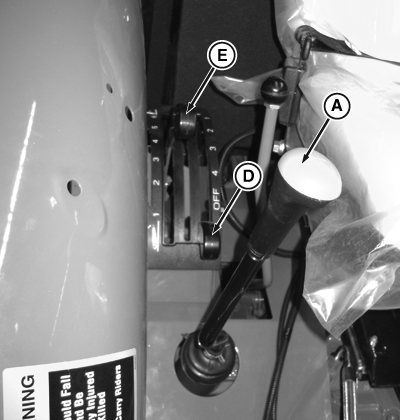

PY17914
PY17914-UN-22MAR13

OOS

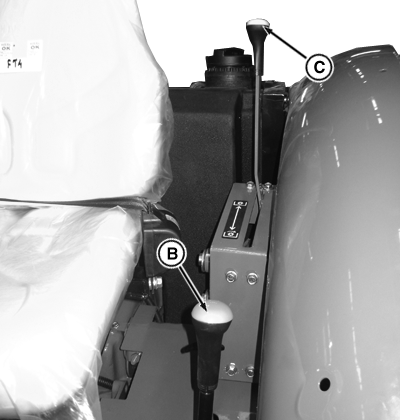

PY17915
PY17915-UN-22MAR13

OOS

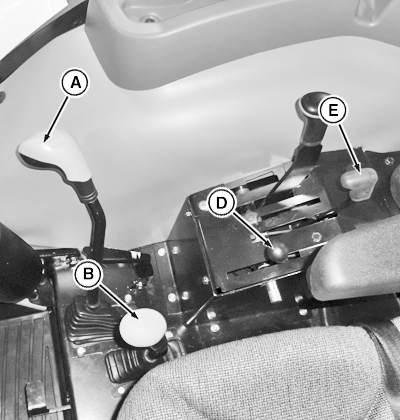

PY17951
PY17951-UN-09JUN14

Cab

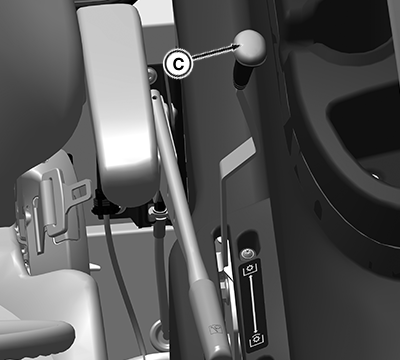

PY17952
PY17952-UN-21OCT16

Cab

A - Gear Shift Lever

B - Range Shift Lever

C - PTO Lever

D - Rockshaft Draft Control Lever

E - Rockshaft Position Control Lever

CAUTION: Prevent asphyxiation. Engine exhaust fumes can cause sickness or death to you or someone else.

If you must operate engine in a building, be positive there is adequate ventilation. Either use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to bring enough outside air into the area.

  1. Check fuel gauge to be sure tractor has plenty of fuel.

  2. Place gear shift lever (A) in park position (P) and range shift lever (B) in NEUTRAL (N) and PTO lever (C) in OFF position. Starter will not operate if gear shift lever and PTO lever are not in these positions.

  3. Place rockshaft control levers (D and E) in lowered position.

  4. Check indicator lights. Indicators should illuminate when key switch is turned to the ON position.

    If any indicator does not function properly, see your John Deere dealer.

SD74272,0000483-19-20130401
