Stopping the Engine — (PowrReverser™ )

1.
   PY17955-UN-19MAR14

   OOS


   PY17956-UN-22MAR13

   Cab


   PY17957-UN-29MAR13

   OOS


   PY17958-UN-22MAR13

   Cab

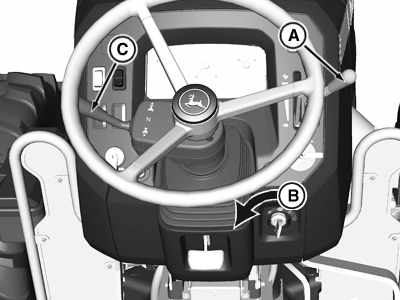

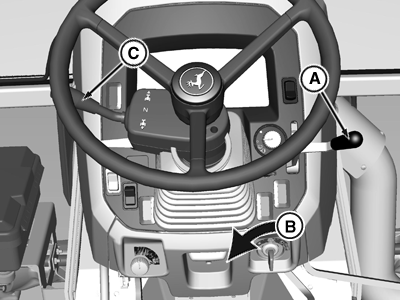

   A - Hand Throttle

   B - Key Switch OFF

   C - PowrReverser™ Lever

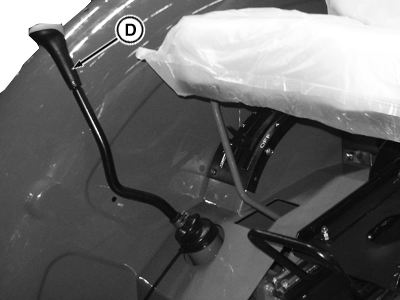

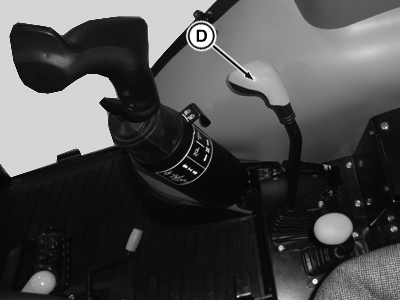

   D - Gear Shift Lever

   Pull hand throttle (A) back to slow idle position.

---




2. Put gear shift lever (D) or PowrReverser™ lever (C) in NEUTRAL.

3. Push gear shift lever (D) to Park position (P)

4. Lower all equipment to the ground, put all SCV levers in NEUTRAL and disengage PTO.

5. Allow engine to idle for one to two minutes.

6. IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

   Turn key switch to the OFF position (B).

   CAUTION: Remove key from key switch to prevent operation by untrained personnel.
