Stopping the Engine — ( Sync Shuttle )

1.
   PY17959-UN-22MAR13

   Cab


   PY17962-UN-22MAR13

   Cab


   PY17960-UN-22MAR13

   OOS


   PY17961-UN-19MAR14

   OOS

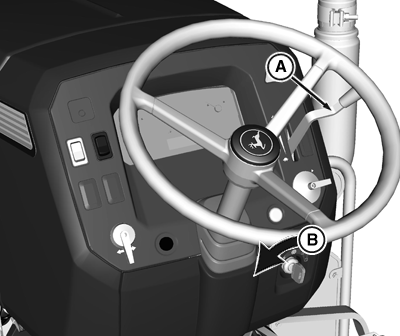

   A - Hand Throttle

   B - Key Switch OFF

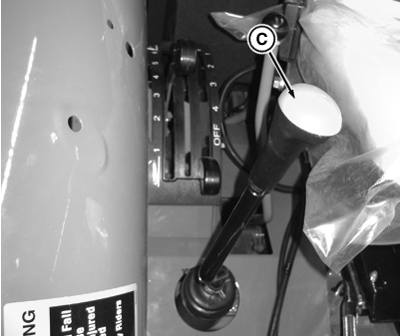

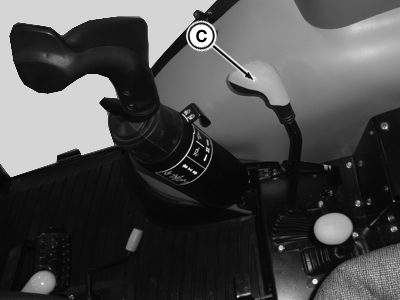

   C - Gear Shift Lever

   Pull hand throttle (A) back to slow idle position. Allow engine to idle for one to two minutes.

---




2. Put gear shift lever (C) in NEUTRAL position.

3. Place the gear shift lever (C) in Park ( P).

4. Lower all equipment to the ground, put all SCV levers in NEUTRAL and disengage PTO.

5. Allow engine to idle for one to two minutes.

6. IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

   Turn key switch to the OFF position (B).

   CAUTION: Remove key from key switch to prevent operation by untrained personnel.
