Using Brakes

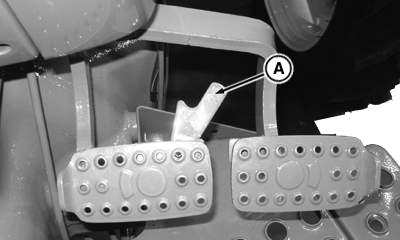

PY16020-UN-27DEC12

OOS

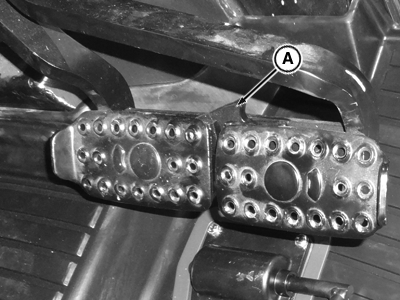

PY17963-UN-22MAR13

Cab

A - Brake Pedal Locking Bar

CAUTION: Before operating tractor on a road, lock pedals together. Use brake lightly and cautiously at transport speeds.

Use individual brakes to assist in making sharp turns. Disengage brake pedal locking bar (A) and depress only one brake pedal.

To stop tractor, depress both brake pedals.

IMPORTANT: To prevent unnecessary wear, never ride the brakes by resting a foot on the pedals.

Reduce speed if towed load is not equipped with brakes and weighs more than the tractor. Avoid hard braking applications. Consult implement operator's manual for recommended transport speeds.

Use additional caution when transporting towed loads under adverse conditions, when turning or stopping on inclines.
