Setting Position Control Lever Stop

1. NOTE: Position control lever stop is used when operating depth or height needs to be repeated often.

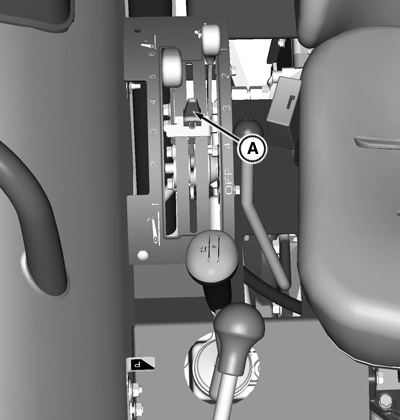

   PY17933-UN-22MAR13

   OOS

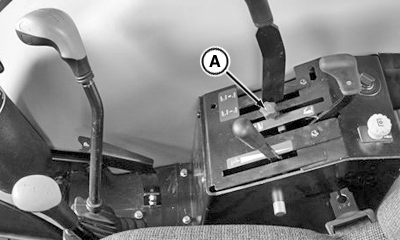

   PY17974-UN-10JUN14

   Cab

   A - Lever Stop

   Operate implement for a few minutes to determine proper depth or height.

---




2. Loosen lever stop (A), and slide against position control lever. Lock stop in position by turning in a clockwise direction. Rockshaft will now lower to same position each time control lever is pushed forward to the stop.
