Adjusting Rockshaft Rate-of-Drop/ Implement/ Transportation Lock

CAUTION: Excessive rate-of-drop may cause damage or injury. Fully lowering implement should require at least two seconds.

PY17976-UN-10JUN14

OOS

PY16173-UN-10JUN14

Cab

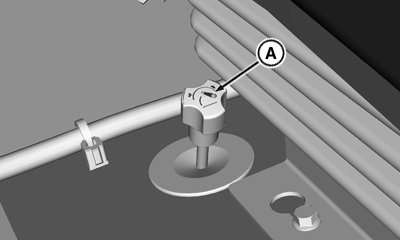

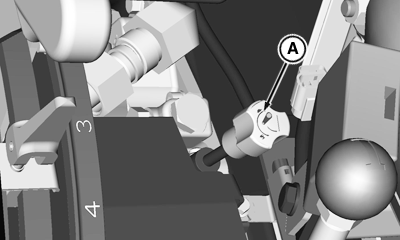

A - Rate-Of-Drop Knob/ Implement Lock

Rockshaft drops faster when a heavy implement is attached. Adjust rate-of-drop knob so that it is slow enough to be safe and prevent implement damage.

Turn rate-of-drop knob (A), located under the seat, clockwise to slow rockshaft drop.

Turn knob counterclockwise to increase rate-of-drop.

Rate-of-drop knob is also called implement lock. When knob is fully screw in, implement will not lower down even if position control lever is fully down. Use implement lock while transporting implement.
