Control Lever and Coupler Identification — CAB

PY17979-UN-10JUN14

PY18423-UN-11JUN14

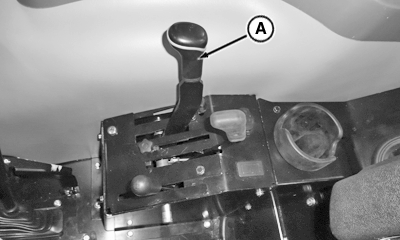

A - SCV I Lever

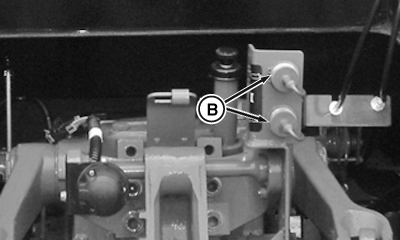

B - SCV I Receptacles

Movement of SCV I lever (A) fore and aft operates coupler (No. 1) receptacles (B).

Coupler I has a detented float position when lever (A) is moved in the fully forward direction.

Coupler II has a regenerative position when SCV II lever (if equipped) is moved in the fully forward direction.

NOTE: SCV II is optional and operation of SCV II is same as SCV I.

The joystick (if equipped) has two basic directions of movement to control oil flow to the mid-mount couplers, located on the side of the tractor.

PY17980-UN-22MAR13

PY18994-UN-20JUN14

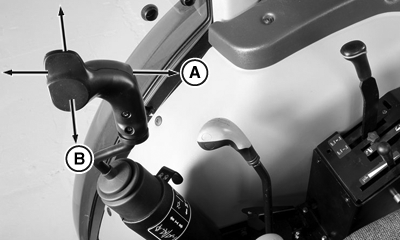

A - Forward and Backward—Float

B - Inward and Outward—Regenerative

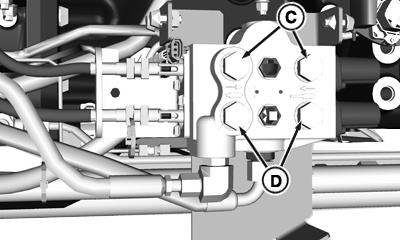

C - Mid-Mount Coupler I—Float (If Equipped)

D - Mid-Mount Coupler II—Regenerative (If Equipped)

• Forward and backward (A) operates coupler I (C).
• Inward and outward (B) operates coupler II (D).

The joystick detents to a float position when moved fully forward.

The joystick detents to regenerative position when moved fully outward.
