Mid-Mount Valve Coupler Identification (If Equipped)

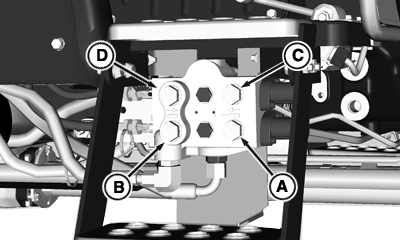

PY18995-UN-20JUN14

Two-Function Mid-Mount Valve — OOS

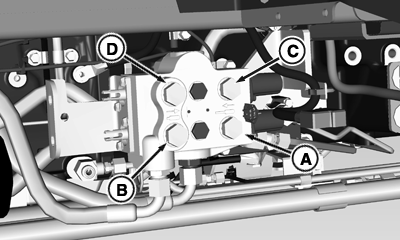

PY18997-UN-20JUN14

Two-Function Mid-Mount Valve — Cab

A - Bucket Cylinder—Rod End (Yellow)

B - Bucket Cylinder—Head End (Black)

C - Boom Cylinder—Head End (Blue)

D - Boom Cylinder—Rod End (Red)
