Neutral Lever Position

PY17940-UN-11JUN14

SCV Levers — OOS

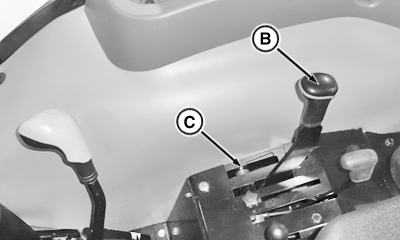

PY17982-UN-11JUN14

SCV Lever — Cab

B - SCV I Lever

C - SCV II Lever (If Equipped)

SCV I lever (B) or SCV II lever (C) (If Equipped), spring pressure returns lever (B or C) to a centered position (except when lever is fully forward in the “Float” position). When the control levers are in the centered position, the remote cylinder is hydraulically locked in position.
