Operating Tractor PTO — PowrReverser™

PY17942-UN-31MAR14

OOS Only

PY17986-UN-31MAR14

Cab Only

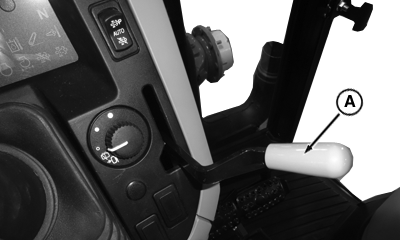

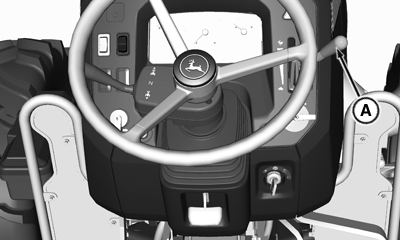

A - Hand Throttle Lever

1. Start engine and push hand throttle lever (A) forward until tachometer indicates PTO rated speed of 2100 rpm for 540 operation.

2. NOTE: If operator is NOT on seat when PTO switch is On:

   • OOS: Operator Alert Indicator (C) will turn ON
   • Cab: Audible alarm will sound




   PY17943-UN-26AUG13

   OOS Only


   PY17987-UN-24MAY13

   Cab Only


   PY17945-UN-22MAR13

   PTO 540/540E Shift Lever (OOS)


   PY17685-UN-10JAN13

   PTO 540/540E Shift lever (Cab)


   PY18020-UN-31MAR14

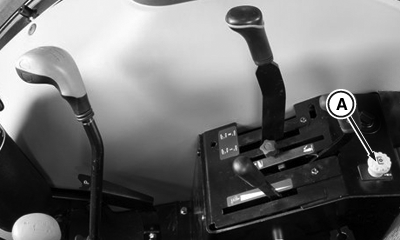

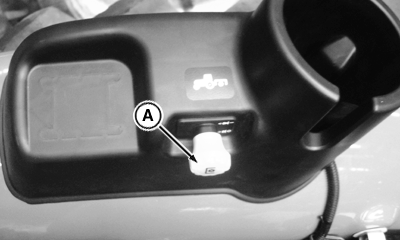

   A - PTO Switch

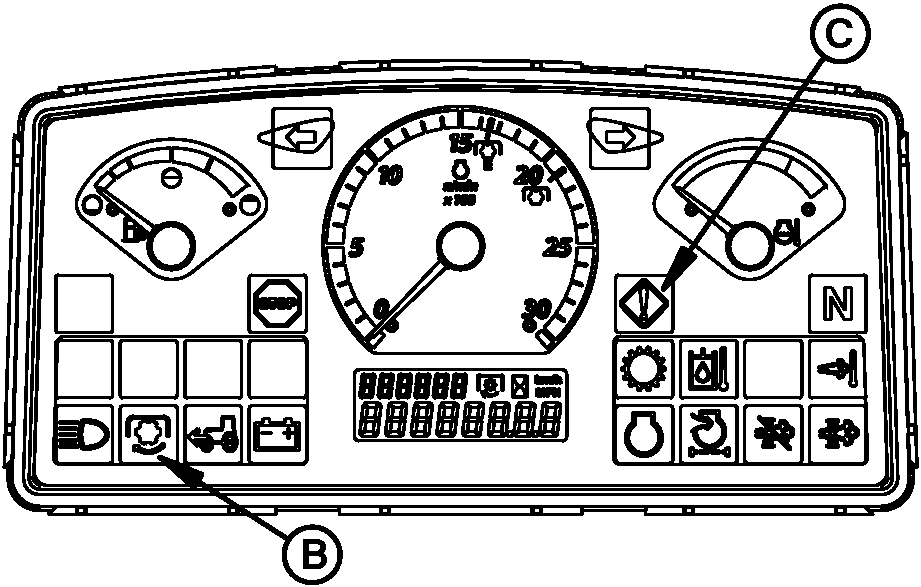

   B - PTO Indicator Light

   C - Operator Alert Indicator

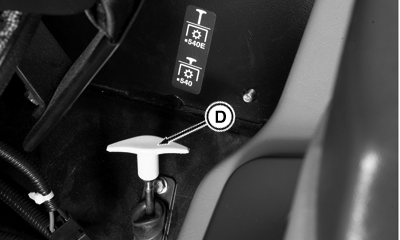

   D - PTO 540/540E Shift Lever

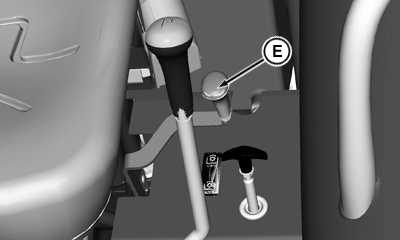

   E - PTO 540/540E Shift Lever

   OOS: Pull the PTO Switch (A) outward, to engage PTO. Indicator light (B) will turn on when PTO is engaged.

   Cab: Pull the PTO Switch (A) up, to engage PTO. Indicator light (B) will turn on when PTO is engaged.

---




3. For Cab: Pull lever (D) up for economical 540 operation and push it down for 540 standard operation.

4. For OOS: Move shift lever (E) forward for economical 540 operation and pull shift lever back for 540 standard operation.

5. CAUTION: Avoid personal injury. Stop engine and allow PTO driveline to stop before adjusting, connecting or cleaning PTO-driven implement.

   To avoid entanglement with rotating shaft, always disengage PTO when not in use.

   OOS: Push the PTO switch inward to disengage PTO.

   Cab: Push the PTO switch down to disengage PTO.
