Operating Tractor PTO — Sync Shuttle

NOTE: Engine will not start if PTO control lever is engaged.

1.

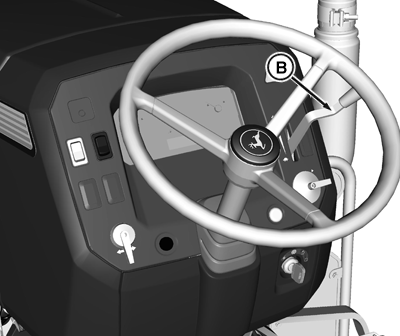

   PY17988-UN-22MAR13

   Hand Throttle Lever — OOS


   PY17972-UN-10JUN14

   Hand Throttle Lever — Cab

   B - Hand Throttle Lever

   Depress clutch pedal, start engine and push hand throttle lever (B) forward until engine tachometer indicates PTO rated speed of 2100 rpm.

---




2. Move PTO lever (A) forward, to engage PTO. Indicator light (B) will turn on when PTO is engaged.


   PY17947-UN-22MAR13

   OOS


   PY16190-UN-04SEP12

   Cab


   PY18073-UN-31MAR14

   A - PTO Lever

   B - PTO Indicator Light

   CAUTION: Avoid personal injury. Stop engine and allow PTO driveline to stop before adjusting, connecting or cleaning PTO-driven implement.

   To avoid entanglement with rotating shaft, always disengage PTO when not in use.

---




3. Pull the PTO lever back to disengage PTO.
