Adjust PTO Clutch Operating Cable

PY16190-UN-04SEP12

PTO Control Lever — Sync Shuttle, Cab

PY17947-UN-22MAR13

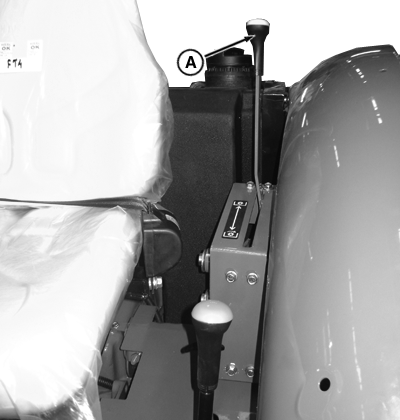

PTO Control Lever — Sync Shuttle, OOS

PY8223-UN-06MAR08

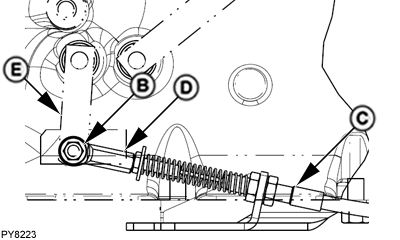

A - PTO Clutch Lever

B - Spring Lock Screw

C - Cable

D - Yoke

E - PTO Lever

1. Push PTO Lever (A) to down (disengaged) position.

2. Remove spring lock screw (B).

3. Rotate PTO lever (E) counter clockwise until free play is removed (slight resistance encountered).

4. Adjust yoke (D) until spring lock screw can be installed through yoke and lever.

5. Install spring lock screw through yoke and lever.
