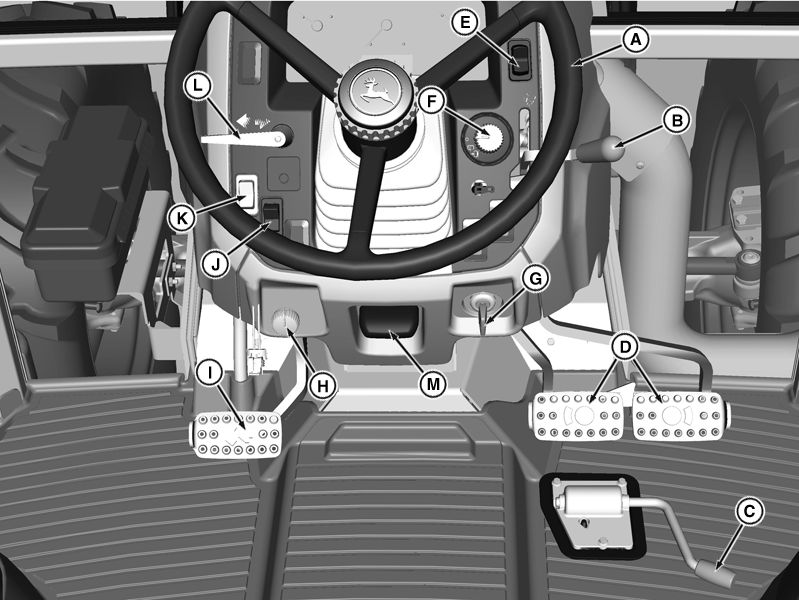

Tractor Controls — Cab (Sync Shuttle Transmission)

PY17993-UN-08APR14

A - Steering Wheel

B - Hand Throttle

C - Foot Throttle

D - Brake Pedals

E - Regeneration Switch

F - Wiper Switch

G - Key Switch

H - Light Switch

I - Clutch Pedal

J - Work Light Switch

K - Roll Mode Switch

L - Turn Signal Lever

M - Steering Wheel Tilt Lever (If Equipped)

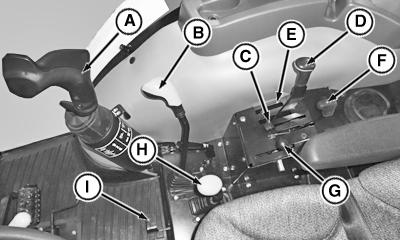

PY18072-UN-09JUN14

Right-Hand side — Sync Shuttle

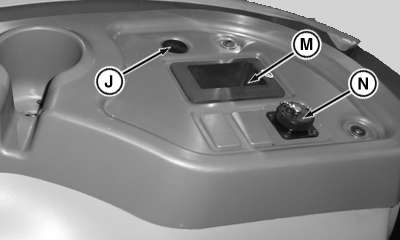

PY17999-UN-22MAR13

Right-Hand side — Sync Shuttle

PY16078-UN-09JUN14

Rockshaft Rate-of-Drop Valve — Sync Shuttle

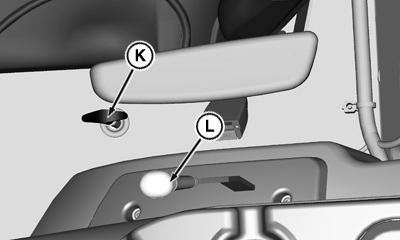

PY16077-UN-25JUL12

Left-Hand Side — Sync Shuttle

A - Midmount SCV Joystick (If Equipped)

B - Gear Shift Lever

C - Position Control Stop Knob

D - SCV I Lever

E - SCV II Lever (If Equipped)

F - Rockshaft Position Control Lever

G - Rockshaft Draft Control Lever

H - Range Shift Lever

I - Differential Lock Pedal

J - Cigarette Lighter (If Equipped)

K - MFWD Lever

L - PTO Lever

M - Ashtray

N - 12-Volt Accessory Electrical Outlet

O - Rockshaft Rate-Of-Drop Knob
