Tractor Controls — Cab ( PowrReverser™Transmission )

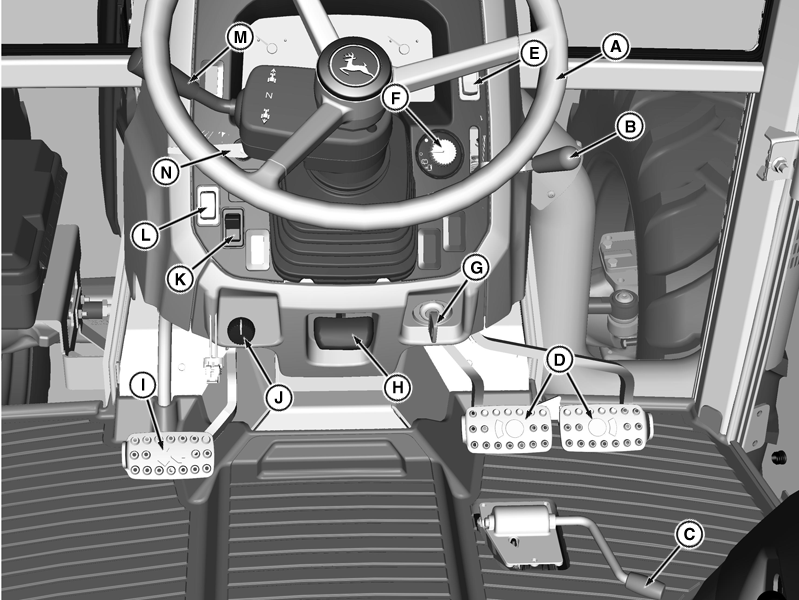

PY17996-UN-08APR14

A - Steering Wheel

B - Hand Throttle

C - Foot Throttle

D - Brake Pedals

E - Regeneration Switch

F - Wiper Switch

G - Key Switch

H - Steering Wheel Tilt Lever (If Equipped)

I - Clutch Pedal

J - Light Switch

K - Work Light Switch

L - Roll Mode Switch

M - FNR Lever

N - Turn Signal Lever

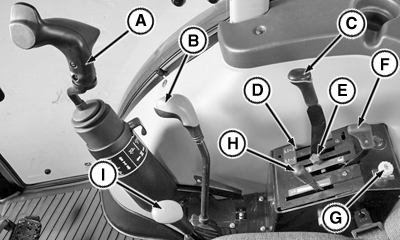

PY17997-UN-09JUN14

Right-Hand side

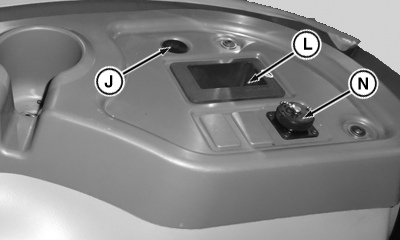

PY17998-UN-22MAR13

Right Hand side

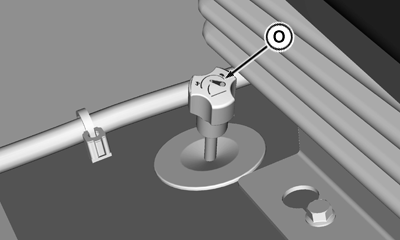

PY16078-UN-09JUN14

Rockshaft Rate-of-Drop Valve

PY16278-UN-25JUL12

Left-Hand Side

A - Midmount SCV Joystick(If Equipped)

B - Gear Shift Lever

C - SCV I Lever

D - SCV II Lever (If Equipped)

E - Position Control Stop Knob

F - Rockshaft Position Control Lever

G - EH PTO Switch

H - Rockshaft Draft Control Lever

I - Range Shift Lever

J - Cigarette Lighter (If Equipped)

K - MFWD Lever

L - Ashtray

M - Economy PTO Lever

N - 12-Volt Accessory Electrical Outlet

O - Rockshaft Rate-Of-Drop Knob
