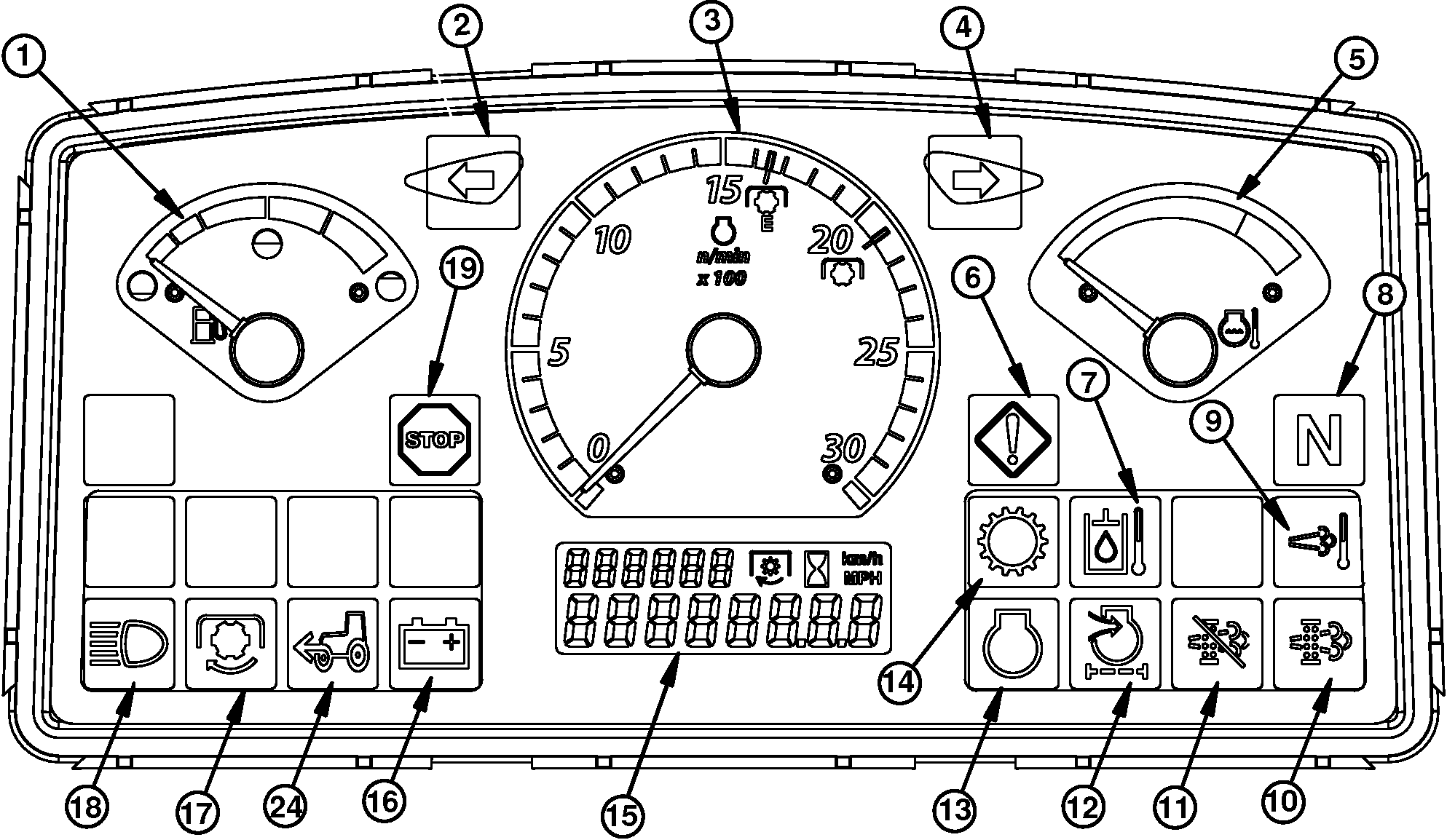

Instrument Panel

PY18000-UN-22AUG13

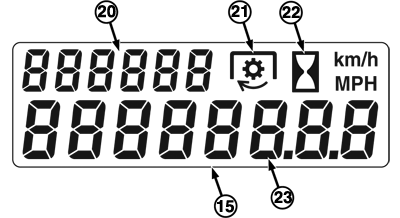

Instrument Panel

PY18001-UN-22MAR13

1 - Fuel Level Gauge

2 - Left Turn Indicator

3 - Tachometer

4 - Right Turn Indicator

5 - Engine Coolant Temperature Gauge

6 - Service Alert Indicator

7 - Hydraulic Oil Temperature (For PowrReverser™ Transmission Only)

8 - Transmission Neutral Indicator

9 - High Exhaust Temperature Indicator

10 - Exhaust Filter Indicator

11 - Exhaust Filter Disable Indicator

12 - Engine Air Cleaner Restriction Indicator

13 - Engine Information Indicator

14 - Transmission Information Indicator (For PowrReverser™ Transmission Only)

15 - Information Display

16 - Charging System Indicator

17 - PTO Engaged Indicator

18 - High Beam Indicator

19 - STOP Indicator

20 - Vehicle Information Display

21 - PTO Icon

22 - Hour Meter Icon

23 - Vehicle Information Display

24 - MFWD Indicator

NOTE: 12x12 PR Transmission: Hour Meter/Ground Speed (LCD Digital) (22) displays hours when tractor is not moving. When tractor is moving, display switches to ground speed. When tractor is stopped, display changes back to hours.

NOTE: 9X3 Sync Shuttle Transmission: Hour Meter(LCD Digital) (22) displays only engine hours irrespective of tractor is moving or at stationary.
