Light Switch Positions — OOS

PY18373-UN-08APR14

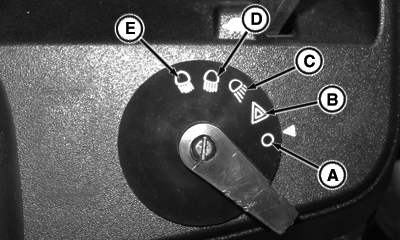

Light Switch

A - Off Position

B - Warning Position

C - Field Light Position

D - Full beam headlights position

E - Low-Beam Headlights position

CAUTION: To alert drivers of other vehicles to your movements, use flashing warning lights whenever you travel on public roads. Flashing lights come ON in Warning, Full beam headlight position, and Low-Beam Headlight positions.

Light switch has four operating positions:

Warning position (B): Warning lights flash, instrument panel illuminates, turn signal arrows on instrument panel flash. This position is for driving on roads during daytime.

CAUTION: Never use work lights when driving on roads. Dim headlights for oncoming traffic. Bright lights could blind or confuse other drivers.

Field light position (C): Use to activate rear facing field light and high beam headlights.

Full beam headlights position (D): Use when traveling on public roads at night or during daylight hours when visibility is limited.

Low-beam headlights position (E): Use to dim headlights to low beams when meeting other vehicles as they approach from the front.

IMPORTANT: Keep lighting in good working order. Repair or replace damaged lighting immediately.

Switch Position	Warning Lights Amber1	Tail Lights Red1	Field Lights2 Rear Facing	Field Lights Front Facing (If Equipped)	Headlights Front Grille
A—Off	Off	Off	Off	Off	Off
B—Warning	On Flashing	Off	Off	Off	Off
C—Field Light	Off	Off	On	On	On—High Beams
D—Full beam headlights position	On Flashing	On Steady	Off	Off	On—High Beams
E—Low-beam headlights position	On Flashing	On Steady	Off	Off	On—Low Beams
