Using Headlights — OOS

PY17905-UN-26AUG13

PY18374-UN-08APR14

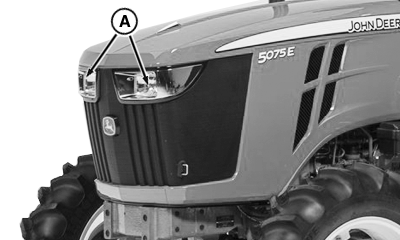

A - Headlights

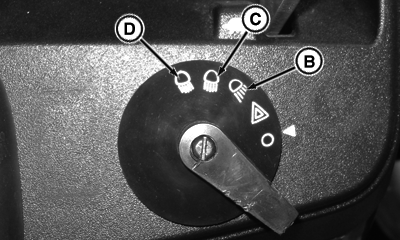

B - Field Lights Position

C - Bright Headlights, Tail Lights and Warning Lights Position

D - Dim Headlights, Tail Lights and Warning Lights Position

CAUTION: Never use work lights when driving on roads. Dim headlights for oncoming traffic.

Bright lights could blind or confuse other drivers.

Dual-beam headlights (A) are used for highway driving, day or night. They are turned on in field lights position (B), bright headlights position (C) or dim headlights position (D) with the light switch.

Always use dim headlights (D) when meeting another vehicle.

Keep headlights adjusted properly. (See ADJUST HEADLIGHTS in Maintenance—Electrical System section.)
