High Beam Indicator

PY18002-UN-22AUG13

PY16200-UN-24JUL12

OOS Only

PY14594-UN-30MAY12

Cab Only

PY14593-UN-07AUG12

Cab Only

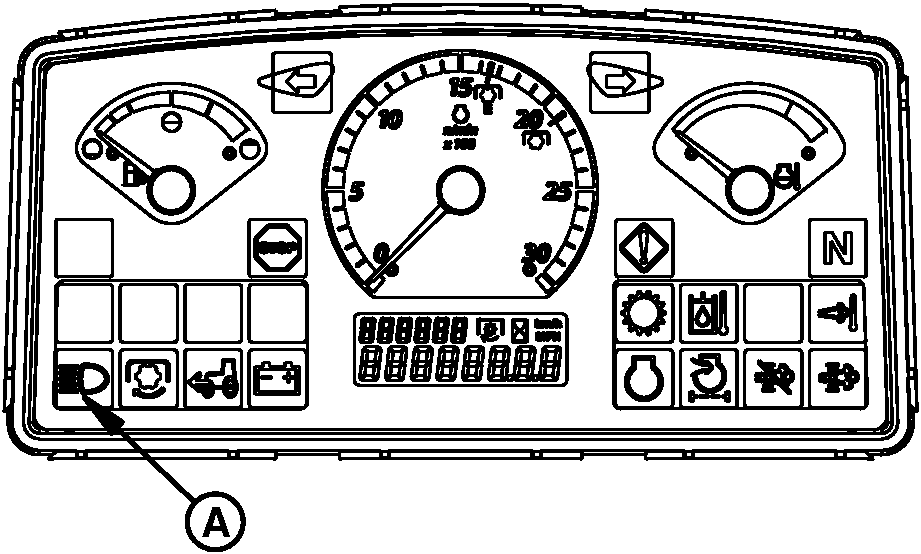

A - High Beam Indicator

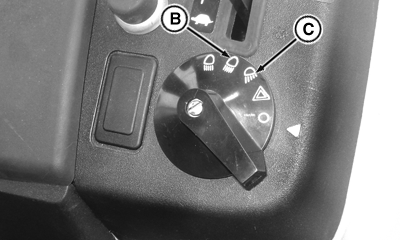

B - Road Lights Position

C - Field Lights Position

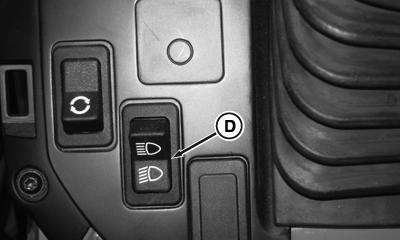

D - High/Low Beam Switch

High beam indicator (A) should glow with key in ON or OFF position and light switch in following positions:

For OOS:

• Road lights position (B).
• Field lights position (C).

For Cab:

• Road lights position (B) and high/low beam switch (D) UP.
• Field lights position (C) and high/low beam switch (D) UP.
