Using Work Lights — Cab (If Equipped)

PY18004-UN-22MAR13

PY14591-UN-07AUG12

PY14600-UN-04JUN12

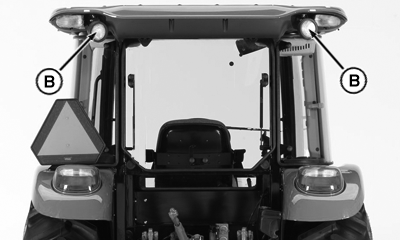

B - Rear Work Lights

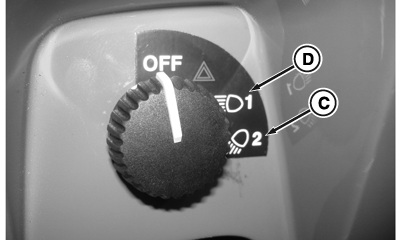

C - Field Lights Position

D - Road Lights Position

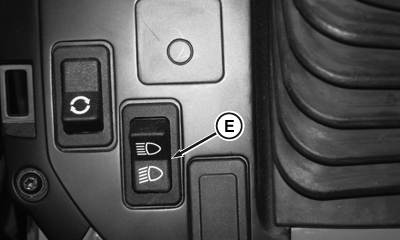

E - High/Low Beam Switch

CAUTION: When operating on a road, move light switch to road lights position (D) and use switch (E) on either bright or dim headlight positions. Never use work lights when transporting on roads. Clear, bright lights at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.

NOTE: Rear work lights can be adjust freely by hand.

Work lights (B) are for field work only. Do NOT use when driving on public roads. Work lights are on when switch is turned to field light position (C).
