Using Tail Lights — Cab

PY18005
PY18005-UN-30APR14

Tail Lights — CAB

PY14594
PY14594-UN-30MAY12

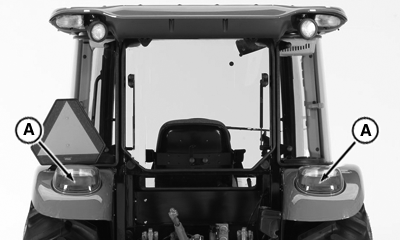

A - Tail Lights (Red)

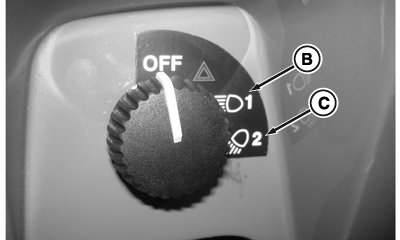

B - Road Lights Position

C - Field Lights Position

Tail lights (A) are on when switch is turned to positions (B) or (C).

NOTE: Optional feature : Brake lights are on when key is in run position and service brake is applied.

Be sure tail light lenses are clean before driving on a road, so other drivers can see them easily.

SD74272,00004AC-19-20140430
