Using Turn Signals

PY17908-UN-22MAR13

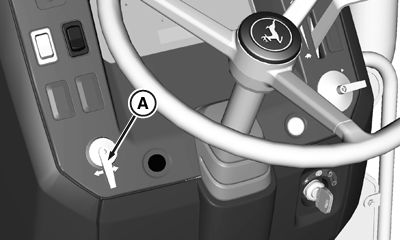

Turn Signal Knob (OOS)

PY14609-UN-30MAY12

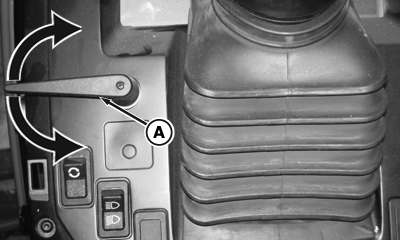

Turn Signal Knob (Cab)

PY17909-UN-26AUG13

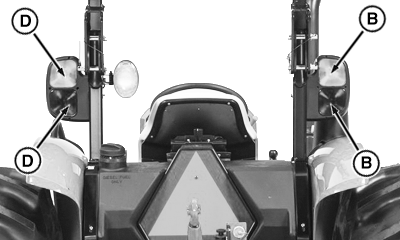

OOS Shown

PY18245-UN-08JUL13

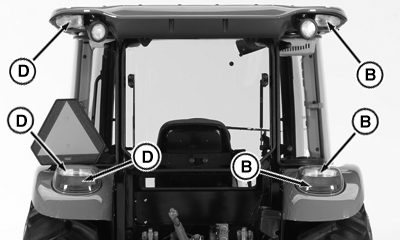

Cab Shown

PY18007-UN-10SEP13

Instrument panel

A - Turn Signal Knob/Lever

B - Right-Hand Lights

C - Turn Indicator Lights

D - Left-Hand Lights

Turn signal knob/Lever (A) position indications:

• Up or Down—For Cab tractors.
• Right or Left—For OOS Tractors.

Move turn signal knob/lever (A) down/left to indicate left-hand turn or up/right for right-hand turn. Indicator lights (C) will flash to signal turn direction.

When knob/lever is up/right position, front and rear facing lights on right-hand side (B) will flash while left-hand lights (D) glow steady. Left-hand lights flash and right-hand lights glow steady when knob/lever is at down/left position.

NOTE: Be sure to manually return lever to center position after turning.
