Operating Windshield Wiper and Washer

PY18010
PY18010-UN-22MAR13

PY16147
PY16147-UN-23JUN12

Rear, Right-Hand Side

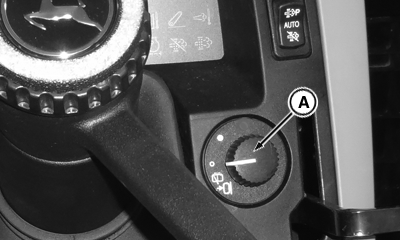

A - Windshield Wiper/Washer Switch

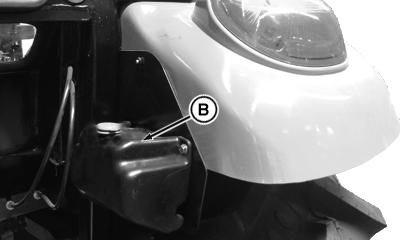

B - Washer Fluid Reservoir

Rotate wiper switch (A) to move windshield wipers to OFF or ON position.

Push switch to activate windshield washer.

Fill reservoir (B) with non-freezing windshield washer fluid. Reservoir is located behind cab on inside of right rear fender.

SD74272,00004B3-19-20130311
