Routing Cables and Harnesses

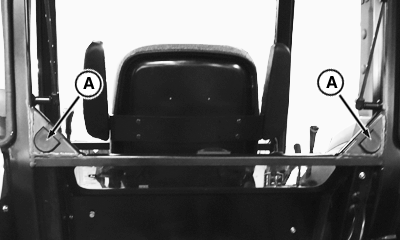

PY18011-UN-22MAR13

Outside of Cab

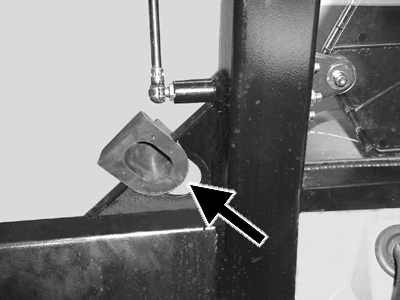

P12682-UN-24NOV03

Inside of Cab

A - Rubber Plugs

Rear window frame of cab has two openings, allowing cables/harnesses to be routed. Open the window and remove rubber plugs (A). Cut rubber plugs at the incisions provided, to allow cables/harnesses to be routed through the plugs. Connect the cable/harness ends, insert rubber plugs and close the window.
