Working With Speed/Hour Meters

PY18017-UN-19MAR14

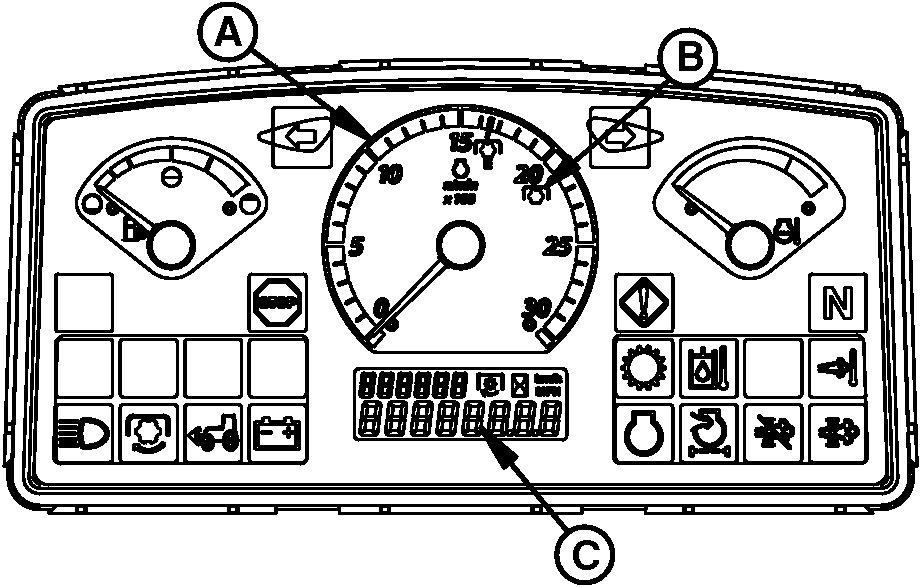

A - Tachometer

B - 2083 rpm Mark

C - Hour Meter

Tachometer (A) shows engine revolutions per minute, read in hundreds.

For standard 540 rpm PTO speed, increase engine speed until tachometer needle is aligned with 2083 rpm mark (B).

Hour meter (C) shows hours of operation in full hours and tenths.

NOTE: For 12x12 PR Transmission: Hour Meter/Ground Speed (LCD Digital) (C) displays hours when tractor is not moving. When tractor is moving, display switches to ground speed. When tractor is stopped, display changes back to hours.

For 9x3 Sync Shuttle Transmission: Hour Meter/Ground Speed (LCD Digital) (C) displays only engine hours irrespective of tractor is moving or at stationary.
