Replace Engine Air Intake Filters

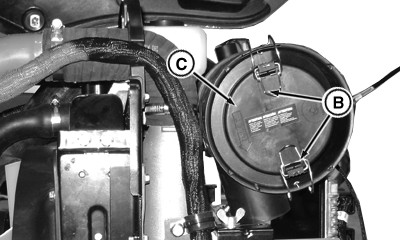

PY18023-UN-01APR14

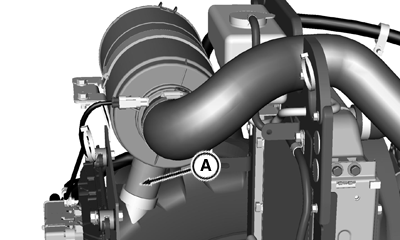

PY18024-UN-22MAR13

A - Lug

B - Latch

C - Cover

Service Interval—Annually* * Interval varies according to operating conditions

1. Raise hood.

2. Release Latch (B) and remove Cover (C) from sideways.

3.

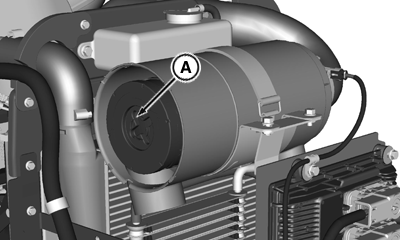

   PY18025-UN-01APR14

   Primary Element

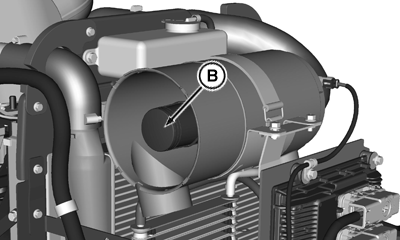

   PY18026-UN-01APR14

   Secondary Element

   A - Primary Filter Element

   B - Secondary Filter Element

   Rotate Primary element filter (A) anticlock wise to remove. Do not use excessive force. If filter does not pull out with ease, move side-to-side to remove safely.

---




4. Removal of Secondary filter (B) is similar to removal of Primary filter (A).

   NOTE: When installing the air cleaner canister, make sure that the dust unloader valve is facing down.

5. Install new secondary filter element (B) carefully and lock the filter by rotating the ¼ turn in clockwise direction.

6.

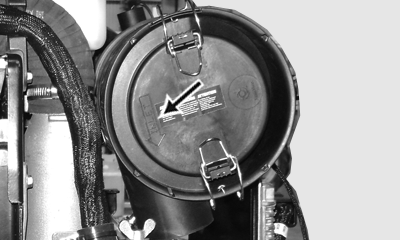

   PY20837-UN-20AUG14

   Installation of new primary filter element (A) is similar to installation of the secondary filter element (B).

   NOTE: Make sure that both of the primary filter and secondary filter are sealed, seated and installed properly. Also clips on the outer cover of the air cleaner are fixed properly.

---




7. Close cover and raise latch.

   NOTE: Make sure arrow on cover points downwards (not be exactly vertical down) and maintain no gap between cover and canister

8. Lower hood.
